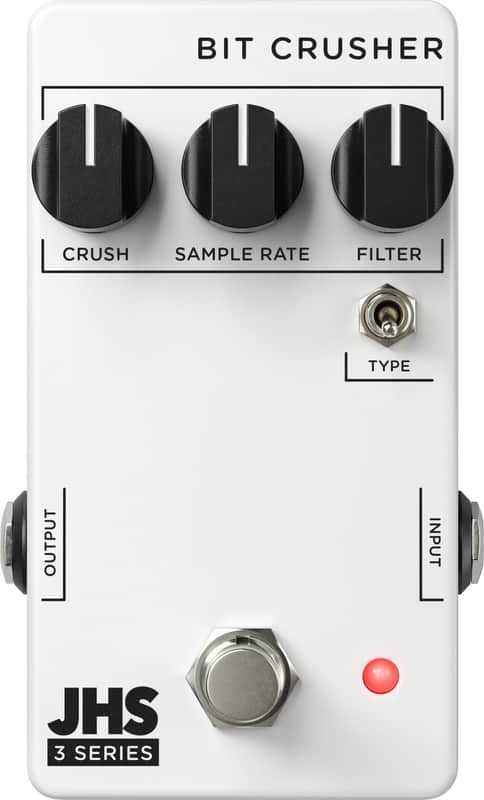

The JHS Pedals 3 Series is a collection of pedals designed to give you affordability and simplicity without compromising quality. Each 3 Series pedal is made by us in Kansas City, MO, using high-quality parts, careful quality control, and attention to every detail. Each pedal has three simple controls and one toggle that offer a wide range of sounds, perfect for beginners and professionals alike. The JHS Pedals 3 Series will inspire your playing and help you explore new sounds at a totally approachable price point. The 3 Series Bitcrusher was built from scratch to do two things with precision: reduce bit depth and reduce sample rate, with a filter to shape the result. The Crush knob controls bit depth, moving from full 24-bit resolution counterclockwise down to 1-bit clockwise, from unprocessed through grainy and textured, into square-wave aggression and gated digital distortion. The Sample Rate knob works counterclockwise from a clean 32.768 kHz down to 2.5 Hz, introducing aliasing and artifacts that range from subtle harmonic shifts to metallic, ring-mod-like chaos and full digital collapse. The Filter knob shapes both, fully clockwise is unfiltered. Turn counterclockwise to sweep the corner frequency and increase the filtering. The Type toggle selects the filter character: down is a second-order low-pass with no resonant peak, inspired by vintage synthesizers like Oberheim, full-bodied and well-suited to bass guitar. Toggle up is a high-pass and low-pass swept in succession, focusing a band of strong mid-range frequencies that evokes the small speaker sound of a handheld game console. Under the hood, this pedal applies a zero-hole filter,a theoretical signal processing concept that had never found a practical application until it became part of this circuit. The JHS Pedals 3 Series Bitcrusher runs on 9VDC center negative power and consumes 65mA.

Product Features

• Analog-Style Bit Crusher Pedal with Analog Filtering
• Simple 3-Control Layout with 2-Position Switch
• Sample Rate Knob Introduces Harmonic Artifacts and Digital Signal Distortion
• Crush Controls Bit Depth; Explore Full Signal Purity, Grainy Texture, Square-Wave Intensity, and Gated Digital Distortion
• Filter Knob Shapes Sample Rate and Crush Controls
• Type Toggle Switch Determines the Filtering Characteristic: Up is a Successive Highpass and Lowpass Sweep, Down is a Second-Order Lowpass

Attributes

• Color: White

Technical Specifications

• Dimensions: 1.22" H x 2.38" W x 4.42" D
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4"
• Power Source: 9V DC Power Supply (sold separately)
• Effects: Bit Crusher
• Processing Type: Analog
• Power Usage: 65mA
