About this listing

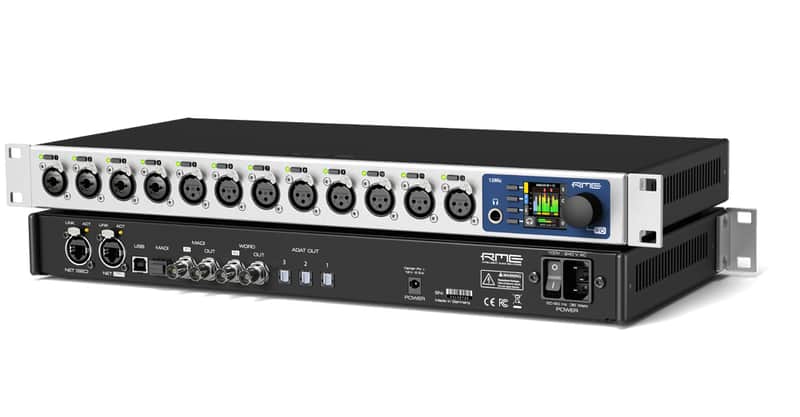

The RME 12Mic-D features twelve microphone and line level inputs with
digital, no-compromise, studio-quality conversion; remote controllable
gains; integrated MADI and Dante connectivity; plus a multitude of
additional functionality, designed for use in high-end studio recording,
live audio, and location sound and music recording.
Specs
Inputs
XLR In 1-12:
Input: XLR, electronically balanced
Input impedance: 3.4 kOhm
Gain range: 75 dB, 1 dB steps
Resolution AD: 24 bit
Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 4 Hz – 29.2
Frequency response @ 192 kHz, -1 dB: 3 Hz – 43.7
THD @ 30 dB gain: < -110 dB, < 0.00032 %
THD+N @ 30 dB gain: < -104 dB, < 0.00063 %
Channel separation: > 110 dB
Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)
Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm
Maximum input level, Gain 0 dB: +18 dBu
Maximum input level, Gain 75 dB: -57 dBu
TRS In 1-4:As above, but:
Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA
TRS jack, balanced
Gain range: 42 dB, 1 dB steps
Maximum input level, Gain 8 dB: +20 dBu
Maximum input level, Gain 50 dB: -22 dBu
Switchable high impedance (unbalanced TS): 1 MOhm
DANTE:
2 x RJ45 for Dante network connectivity (up to 64 channels)
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
Intelligent Clock Control switches clock source seamlessly
ADAT:
3 x TOSLINK
Quad Speed (S/MUX4): 1 x 2 channels 24 bit 192 kHz
Outputs
Phones 1/2:
Resolution: 24 Bit
Noise (DR): 115 dB RMS unweighted, 118 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz – 22 kHz
Frequency response @ 96 kHz, -0.5 dB: 9 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz
THD+N: < -100 dB, < 0.001 %
Channel separation: > 110 dB
Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)
DANTE:
2 x RJ45 for Dante network connectivity (up to 64 channels)
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
Intelligent Clock Control switches clock source seamlessly
General
2x RJ45 for Dante® network connectivity Single Speed: up to 64 channels 24 bit 48 kHz Double Speed: up to 32 channels 24 bit 96 kHz Quad Speed: up to 16 channels 24 bit 192 kHz
MADI input redundancy (requires optional SFP module)
Internal routing of up to 268x282 channels
19” enclosure 1 unit height
1,54” full color display with control knob and four buttons for convenient, direct access to all features
Remote control via HTTP & JSON
internal PSU, optional 12V DC redundant power supply
USB 2.0 (for remote control and firmware updates)
DC-coupled outputs
Hardware Specifications
Dimensions: 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)
Weight: 2.8 kg (6.2 lbs)
Package: 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)
Conformity: CE, FCC, WEEE, RoHS
Power supply: internal 30 W 100-240 V AC, external 12 V 2.5 A DC (optional)
Power consumption: typ. 20 W, standby 0.5W
Pricezł15,344.31
