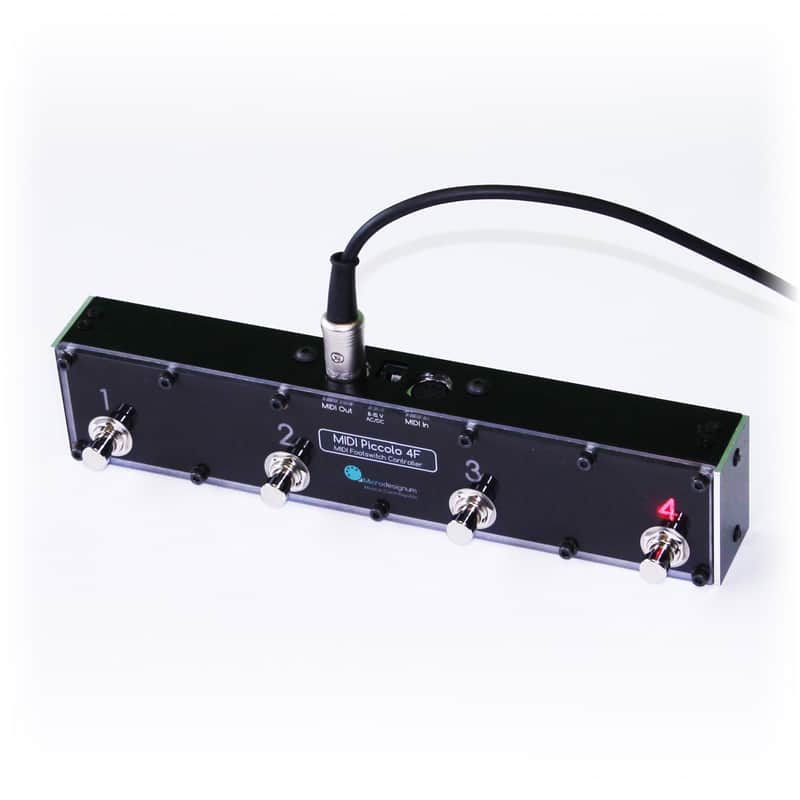

Microdesignum MIDI Piccolo 4F miniature foot controller

Simple foot MIDI controller with 4 footswitches for controlling 4 presets of guitar effects or 4 channels of a guitar amp.

The MIDI controller can be connected to the controlled device using single MIDI cable which conducts MIDI signal and power supply. It's very simple to attach it fast and it saves time when unpacking the controller before a concert.

How it works

The MIDI controller has 4 footswitches - registers 1 to 4. There is a LED near each of the four footswitches, indicating that the register is on. When a fooswitch is pressed, the MIDI message Program Change on channel 1 is sent to MIDI output with the value according to the footswitch, so the first footswitch sends Program Change 1, second footswitch sends Program Change 2 and so on.

The response on these simple MIDI messages can be programmed on a receiving device - MIDI switcher, amp, multieffect and so on.

Dimensions: 254 × 50 × 35 mm (without the height of footswitches)
