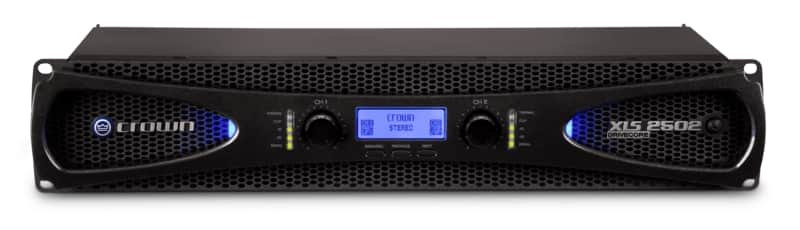

Crown Audio XLS2502 Two-channel 775W Power Amplifier
The XLS2502 delivers serious power in a compact, lightweight chassis that slides into a standard 2U rack space without breaking a sweat. Its Class D DriveCore technology keeps the amp running cool and efficient while producing clean, undistorted output across demanding venue applications. The redesigned front panel features a display three times larger than its predecessor, making parameter monitoring and menu navigation straightforward during live setups.
Power & Efficiency
This amp outputs 440W per channel at 8 ohms, 775W at 4 ohms, and 1200W at 2 ohms, with bridged-mode capability reaching 2400W at 4 ohms for maximum headroom. The ultra-efficient DriveCore topology keeps the 10.8-lb chassis cool under load with forced-air fan cooling, eliminating thermal stress during extended operation.
Audio Quality & Control
Signal integrity remains pristine with THD below 0.5%, signal-to-noise ratio greater than 103dB, and damping factor exceeding 200—specifications that ensure tight, responsive speaker control across the full 20 Hz to 20 kHz frequency response. The integrated PureBand Crossover System, bandpass filters per channel, and Peakx Limiters provide professional-grade DSP control for crossover tuning and speaker protection.
Key Features
440W per channel at 8 ohms; 775W per channel at 4 ohms; 1200W per channel at 2 ohms
2400W bridged mode at 4 ohms; 1550W bridged mode at 8 ohms
Class D amplifier with Crown DriveCore ultra-efficient technology
19" x 3.5" x 10.7" dimensions; 2U rack space; 10.8 lbs
Frequency response 20 Hz to 20 kHz, +0/-1 dB
THD < 0.5%; Signal-to-Noise >103dB; Damping Factor > 200; IMD < 0.3%
2x XLR, 1x stereo RCA, 2x 1/4" inputs; 2x speakON and 2x binding post outputs
Selectable input sensitivity: 1.4Vrms and .775Vrms options
Integrated PureBand Crossover System with bandpass filter per channel
Peakx Limiters for output protection and speaker safety
Three times larger LCD display for parameter monitoring
100V-240V, 50/60 Hz universal power input; efficient forced-air cooling
The XLS2502 combines serious power delivery, compact ergonomics, and professional DSP tools in a platform built for touring systems and permanent installations alike.
