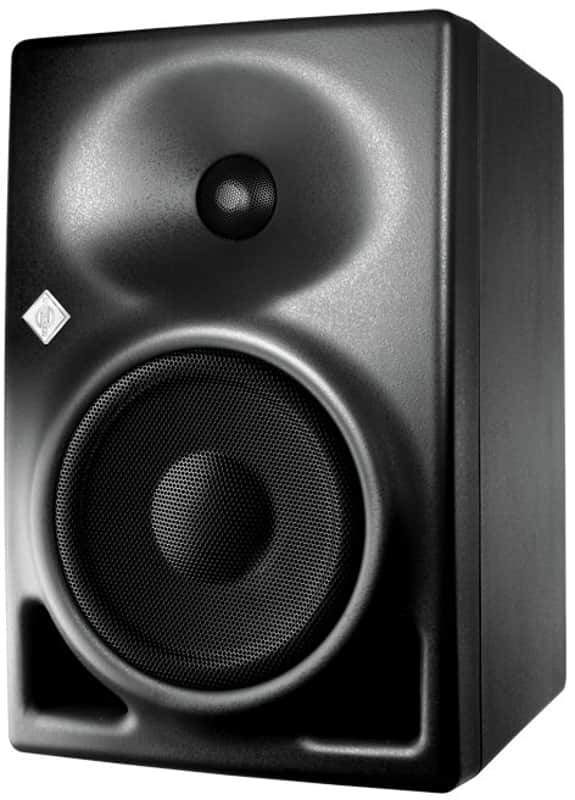

Neumann KH 120 D B-Stock - digital / gray

B-Stock Some scratches on bottom, See photos

In the project, music, radio & Post Production Studios for recording, mixing & mastering used

As KH 120, but with digital inputs: 24-bit, 192 kHz digital input on XLR-F and BNC connectors with buffered BNC output. Accepts AES3 (XLR in and BNC) and S / P-DIF formats. Chaining option via BNC connectors.

2 way bi-amplified monitor with thermally protected 80 + 80 W Class A / B amplifiers. Limit and Clip indicator via LED dimmable logo. Magnetically shielded 1 "titanium / fabric dome tweeter and 5 1 / 2" woofer with a membrane made of sandwich composite. Tweeter and woofer is protected by wire mesh. Compact, cast aluminum housing with waveguide and Near-integrated air ducts. Electronically balanced XLR-F input with ground lift and> 10 ohms impedance. 24-bit, 192 kHz digital input on XLR-F and BNC connectors with buffered BNC output. Accepts AES3 (XLR in and BNC) and S / P-DIF formats. Chaining option via BNC connectors. Integrated Delay for delay and lipsync settings. Level remote control option. Crossover 4th Order and 4-step acoustic controls for Bass, "Low-Mid" and "Treble". Independent Low / High Limit. High level of 111.1 dB at 1 m (3% distortion), passband frequency response 52 Hz - 21 kHz (-3 dB). Self generated <0 dB (A) at 1 m. 95 dB maximum output level of 150 Hz possible - with THD <0.5% at 1 m. Box volume 6.5 liters, Dimensions 277 x 182 x 220 mm, weight 6.3 kg. Two rear M8 internal thread for attachment of mounting hardware. Standard color: RAL 7021 (anthracite).

Acoustics? 3 dB free field frequency response 52 Hz ... 21 kHz, ?? 3 dB free field frequency response in the passband of 54 Hz ... 20 kHz, ?? 2 dB Self (with input gain of 100 dB for 0 dBu) <20 dB (A) at 10 cm sine wave output at THD <0.5% at 1 m 95 dB SPL (> 100 Hz) Max SPL in half space at 3% THD at 1 m 111.1 dB SPL (averaged between 100 Hz and 6 kHz) Electronics woofer amplifier, continuous (peak) Output Power * 50 W (80 W) Tweeter amplifier, time-(peak -) Output Power * 50 W (80 W) analog controller technology, active crossover frequency 2.0 kHz Crossover Slope (dB / oct) 24, 4. Order equalizer - Bass 0, -2.5, -5, -7.5 dB Equalizer - Mid 0, -1.5, -3, -4.5 dB Equalizer - High +1, 0, -1, -2 dB protection circuit Limiter: low, high subsonic filter frequency, slew rate 30 Hz, 6 dB / Oct. Analog input impedance, electrically balanced XLR,> 10 k [ohm] Input Sensitivity 0 dBu to -15 dBu level switch 94, 100, 108, 114 dB SPL CMRR> 56 dB @ 15 kHz, display and power supply displays and ads - Device switched Neumann logo white "Displays and indicators - limit / clip Neumann logo" red "line voltage, line frequency 100-240 VAC, 50/60 Hz Power consumption - idle 20 W Power consumption - full output AC 200 W mechanical housing surface, color: standard painted aluminum, anthracite Boperating conditions +10 ?? C to +40 ?? C, <Relative humidity: 90%, noncondensing Transport-/Lagerbedingungen? 25 ?? C to +70 ?? C, <Relative humidity: 90%, noncondensing driver Magnetically shielded woofer 130 mm (5.25 " ) Tweeter 25 mm (1 ") 2 x M8 rigging points on the back wall height x width x depth 277 x 182 kg x 220 mm internal net volume / external volume of 6.5 liters / 9.7 liters Weight 6.2
