Drunk Beaver Tornado Phaser MK2

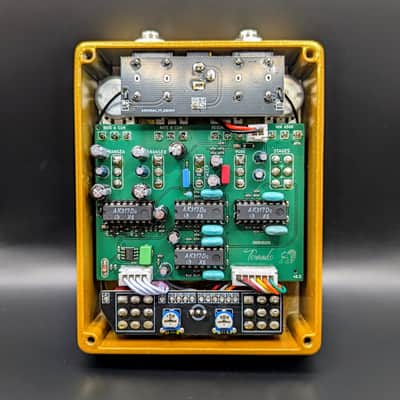

Tornado Phaser MK2 is a fully analog phaser that utilizes OTA AK317DC chips. It combines features from Ross™️ Phaser, EHX™️ Small Stone, and Blackout™️ Whetstone Phaser. Tornado Phaser lets you switch between two rates and range presets via a separate footswitch. Its cool features include vibrato mode, in-phase and out-of-phase phasing, ring mod, and chorus tones. Works great on clean and dirty (overdrive/distortion) guitar signals.

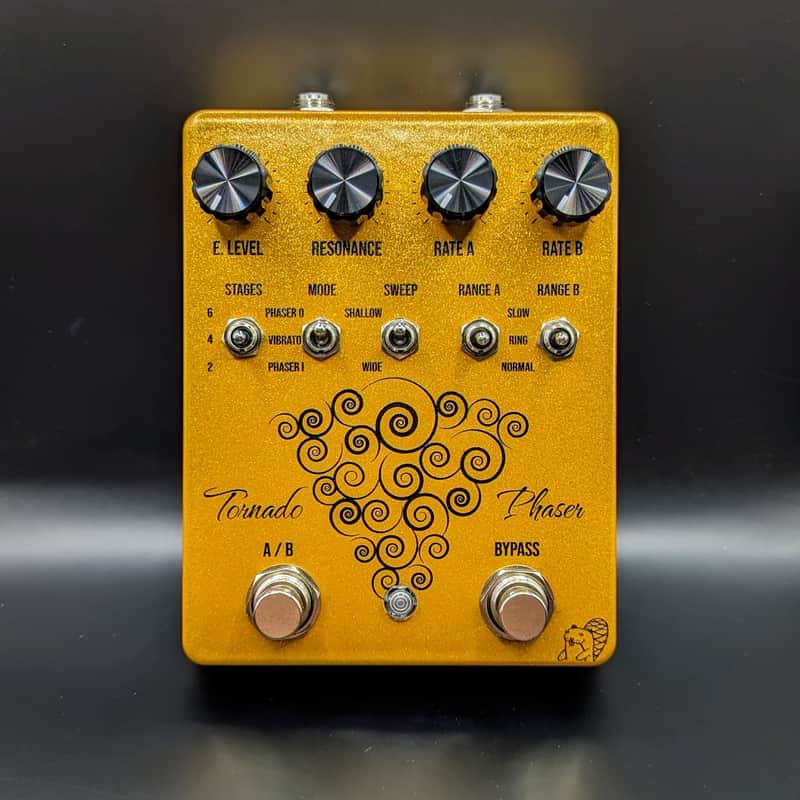

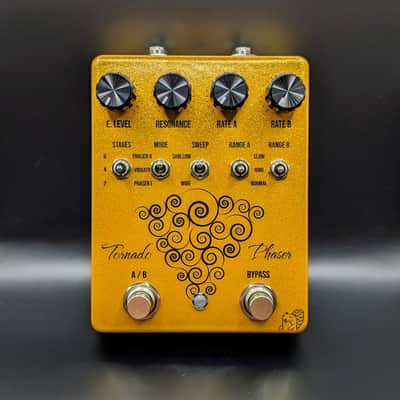

Controls:

• Effect Level - the amount of the modulated signal is mixed back with the input signal.
• Resonance - feedback passed back to phaser stages; it adds some distortion to the signal.
• Rate A/B - controls the modulation speed for each preset.
• Range A/B toggle - switches between normal, fast, and slow rates, going from 40-second sweeps at the slowest to ring modulation and octave generation at the fastest.
• Stages toggle - switches between 2, 4, or 6 stages phaser; fewer stages means a more subtle effect.
• Mode toggle - switches between 2 phasers (Phaser I - in-phase phasing, Phase O - out-of-phase) and vibrato modes.
• Sweep toggle - switches between Wide and Shallow sweep modes for the LFO. It means how far modulated filters are going across the bandwidth.
• LED brightness trimmers - placed on the PCB trimmers allow you to adjust the status LED brightness.

Power Supply: 9V DC adapter (Boss-style negative center) not included. No batteries, as they are bad for the environment 🌲.

Current draw: 10 mA

Dimensions: 1590BB, 120mm x 94mm x 33mm

Lifetime Warranty - feel free to contact me if you have any troubles with a pedal!

FREE Worldwide shipping 🌏

Feel free to ask. I'll answer any questions ASAP.
