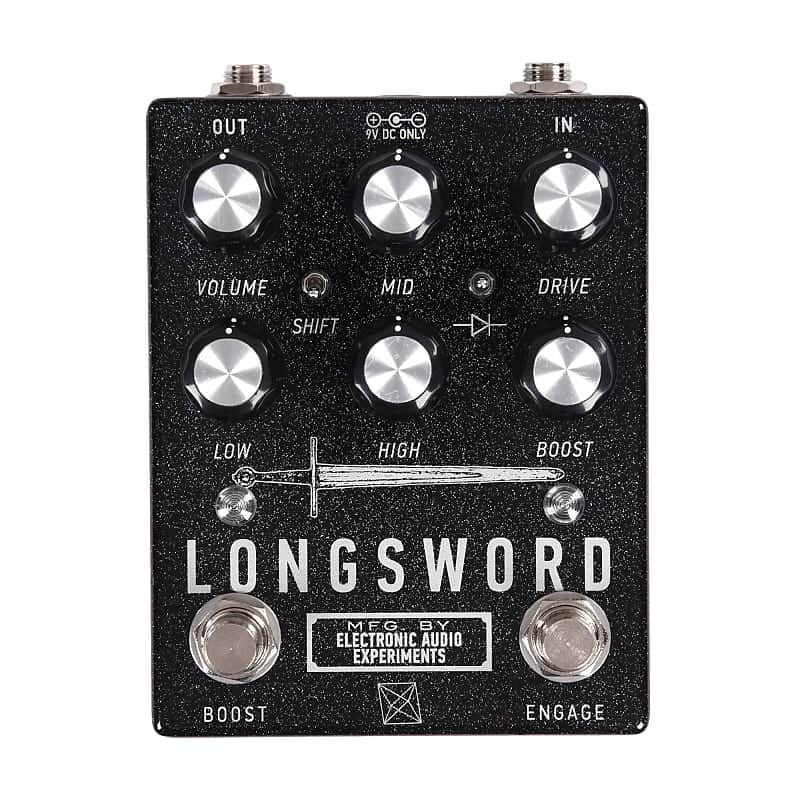

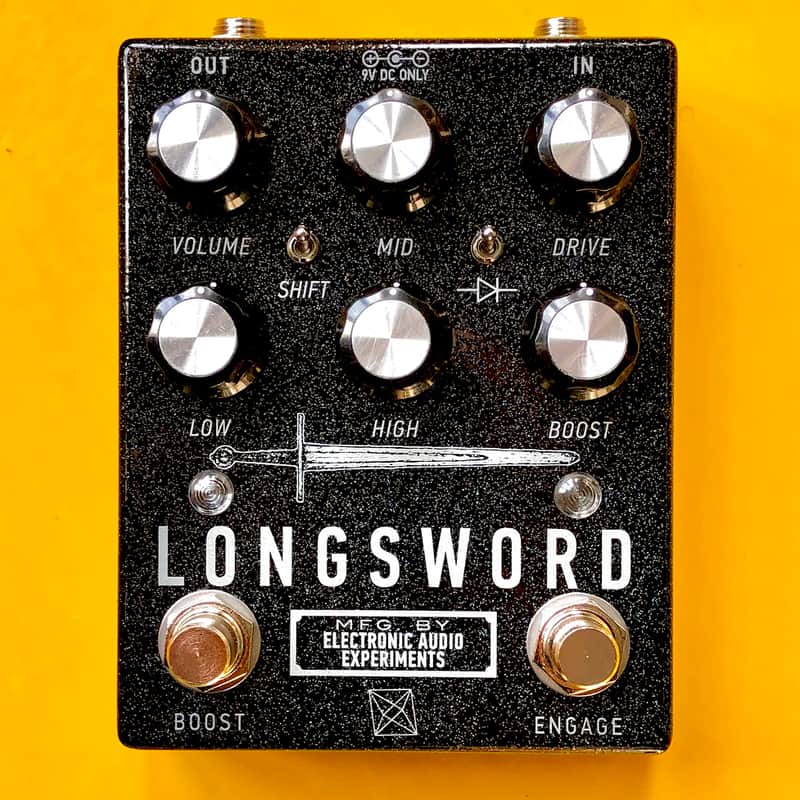

The Electronic Audio Experiments Longsword is yet another contender in the endless void of op-amp based drive pedals, but it is one that takes the topology in a novel direction. Cascaded gain stages allow for the full range from clean boost to massive distortion, all without sacrificing tonal flexibility. The equalizer combines bass and treble shelving filters with an active, frequency-selectable midrange boost/cut control. This lets the user sculpt a diverse array of tones and carve out a niche in even the most dense of mixes. The Longsword has a broad frequency response which makes it work equally well with guitar, baritone, and bass.Controls:Level: output volumeDrive: go from light grit to heavy overdriveLow/High: James/Baxandall tone stack (shelving filters)Mid: active midrange boost/cutShift: selects frequency controlled by Mid potDiode: selects between clipping diodes, to alter dynamics and headroomUp: MOSFET clipping, medium compressionCenter: no diodes, minimal compressionDown: Silicon diode clipping, maximum compressionBoost (Footswitch): engages a front end mid boostBoost (Knob): adds up to 20dB of gain when the Boost is engagedElectrical SpecificationsBypass: Relay switching with true bypassInput impedance @ 1 Khz: 500kΩOutput impedance @ 1 Khz: 1kΩPower: 9V DC, 2.1 mm center negative barrel. The current draw is 75 mA.
Price€329
Incl. VAT
+ €5.90 Shipping
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
