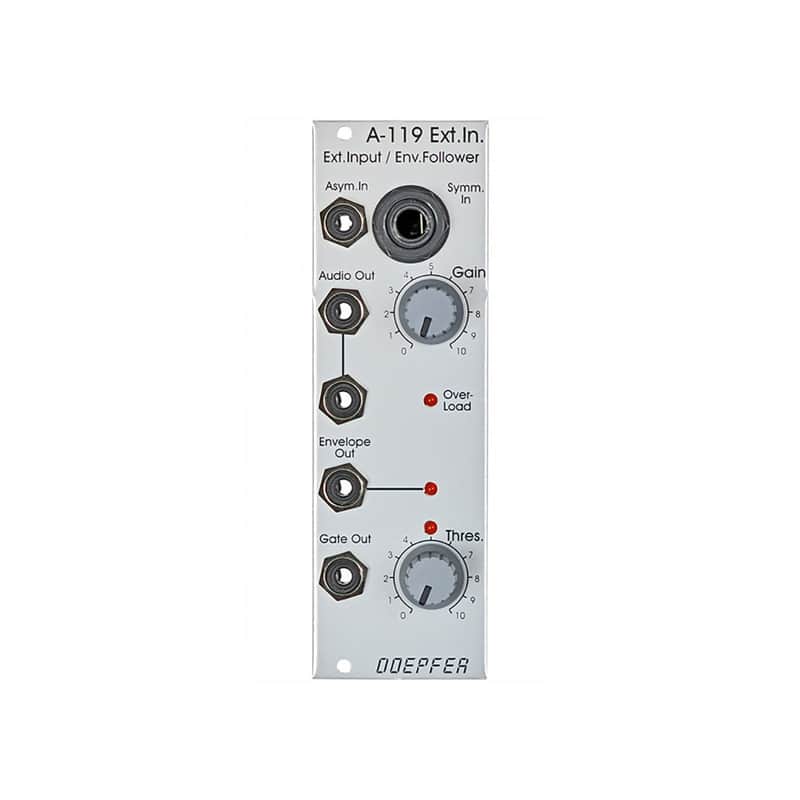

Module A-119 (External Input / Envelope Follower) is designed to allow external audio signals to be integrated into the System A-100. It comprises a pre-amp, envelope follower, and comparator.The pre-amp has two inputs: an unbalanced input for line level signals, with a gain factor of from 0 to 20, and a balanced input with a gain factor of from 0 to 500, for insertion of low level signals, for instance from a microphone or electric guitar.The Envelope Follower reads the signal level of the input, and puts out a proportional voltage as an envelope at its own output.The comparator generates a gate signal whenever the input goes above an adjustable trigger threshold.Three LEDs help you keep track of overload, the envelope, and the gate signal.Width: 8TE / 8HP / 40.3 mmDepth: 45 mm (measured from the rear side of the front panel)Current: +30mA (+12V) / -20mA (-12V)
Price£65
+ £6 Shipping
£1 shipping when combined
14-Day Return Policy
Enjoy peace of mind with your new gear
1
5 in stock
