About this listing

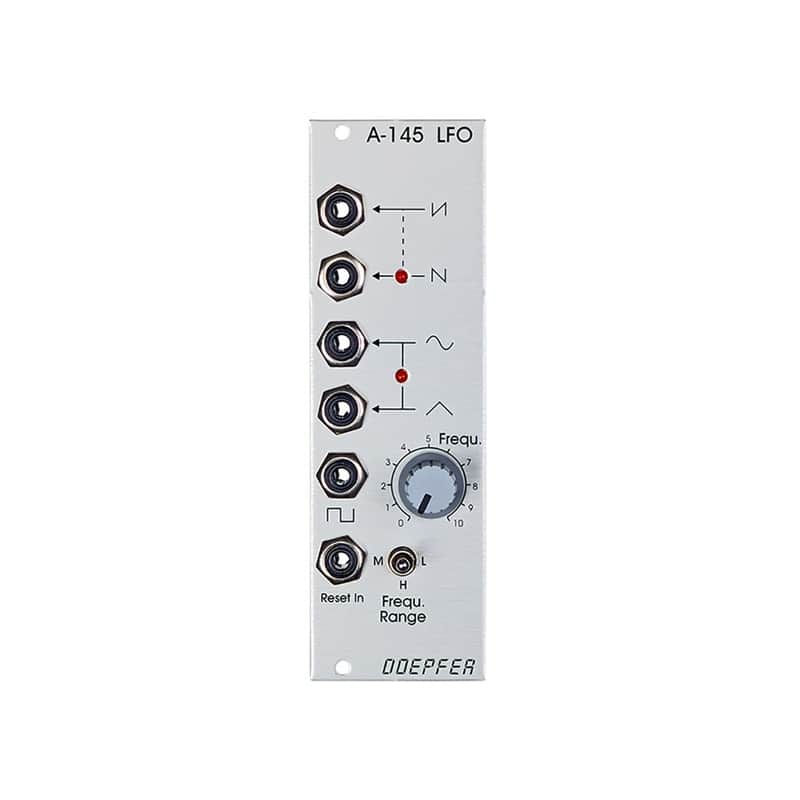

Module A-145 is a low frequency oscillator, which produces cyclical control voltages in a very wide range of frequencies. Five waveforms are available: sawtooth, inverted sawtooth, triangle, sine and square wave. The LFO can be used as a modulation source for any number of modules - for instance modulating the pulse width or frequency of a VCO, modulation of the cut-off frequency of a VCF, or amplitude modulation with a VCA. A three-way switch lets you select three frequency ranges, spanning from one cycle every several minutes at the lowest, to moderate audio frequency at the highest (about 4-5 kHz).The LFO signal can also be synchronised, via the reset input.Width: 8 TE / 8 HP / 40.3 mmDepth: 55 mm (measured from the rear side of the front panel)Current: +30mA (+12V) / -20mA (-12V)
Price£59
+ £6 Shipping
£1 shipping when combined
14-Day Return Policy
Enjoy peace of mind with your new gear
1
5 in stock
