About this listing

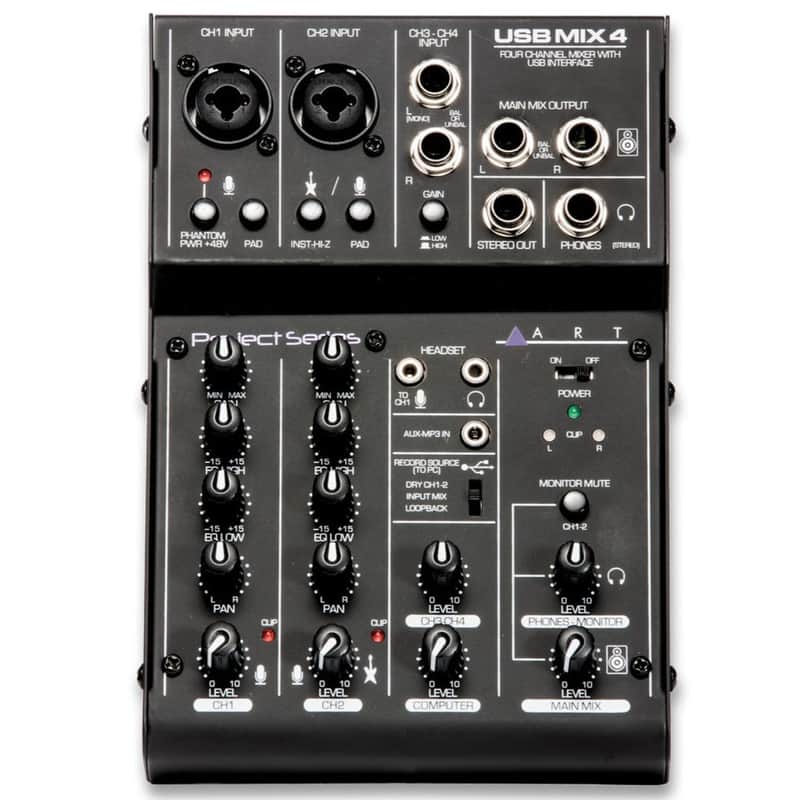

Designed with streamers and content creators in mind, the USB Mix 4 is a compact analog mixer with an integrated digital audio interface.
The mixer section has four channels. Channels 1 and 2 have combo inputs for XLR and 1/4 signals, and 2-band EQ for tone shaping. Channel 1 also has switchable phantom power for use with condenser microphones, and Channel 2 has a switchable Hi-Z mode so you can directly connect an instrument level signal from a guitar or bass. Channels 3 and 4 are configured as a stereo pair.
In addition to the standard connections, there are dedicated jacks for a headset mic and media player. A convenient switch on the front panel lets you select the source for the stereo audio interface. Choose from the full stereo mix, only channels 1 and 2, or a loopback mode that combines the mixer inputs with the audio playback from your computer to easily share everything youre hearing with your streaming audience.
Combining the familiar workflow of a traditional mixer with easy digital integration, the USB Mix 4 is a simple and intuitive foundation for home and mobile recording.
Features
High Performance Low Noise Design
Switchable +48v Phantom Power (CH1)
Assignable USB Record Source
Independent Level Controls for Main and Headphone/Monitor Outputs
1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
Operates on USB Power or 5VDC External Power Supply (Included)
Specs
Input Connections
XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2)
¼-inch TRS Balanced (CH3 & CH4)
1/8-inch TRS Aux/MP3, 1/8-inch Headset Mic
Output Connections
¼-inch TRS Balanced Main Mix Outputs
¼-inch TRS Stereo Output & Monitor Outputs
1/8th-inch Headset Output
Signal to Noise Ratio >90dB Typical (Ref 0dBu)
Maximum Input Level +8dBu (Mic), +16dBu (1/4-inch Input)
Maximum Output Level +15dBu Main Mix Outputs
Maximum Gain >55dB (Mic), >37dB (Instrument), 5dB (CH3 & CH4)
USB Computer Interface USB Class Compliant plug-and-play Mac / PC Interface
Power Via USB or 5VDC @ 500mA
Dimensions 1.75″H x 5.1″W x 7.5″D (45mm x 130mm x 191mm)
Weight 1.56 lbs. / .71 kg
Note 0 dBu = 0.775Vrms
Price$139.99
+ $30 Shipping
$15 shipping when combined
Only 1 left
Grab it before it's gone
