About this listing

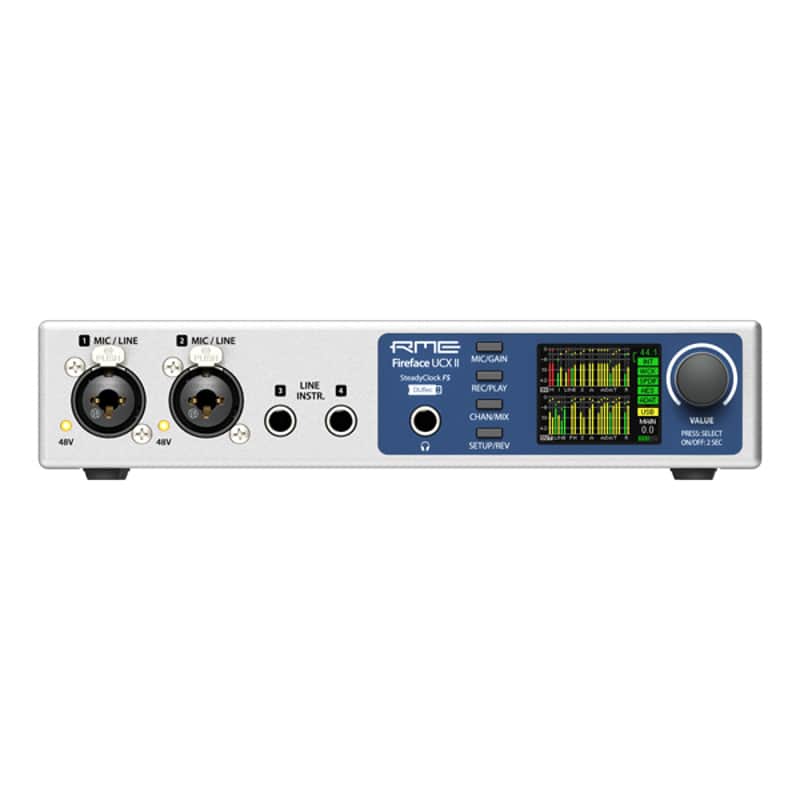

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact advanced interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels. The most powerful & portable RME Audio USB InterfaceThis unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II. Specs Fireface UCX II AnalogAD, Line In 5-8, rearResolution AD: 24 bitSignal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBAFrequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.8 kHzFrequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHzTHD: < -110 dB, < 0.00032 %THD+N: < -104 dB, < 0.00063 %Channel separation: > 110 dBInput: 6.3 mm TRS jack, electronically balancedInput impedance: 8 kOhm unbalanced, 12 kOhm balancedInput sensitivity switchable to +19 dBu and +13 dBuVariable gain: 0 to +12 dBMinimum level for 0 dBFS: +1 dBu, -1.2 dBVLine In 3-4, frontAs AD, but:Additional Gain stage: 0 up to +12 dBMaximum input level, +19 dBu, Gain 0 dB: Line +19 dBu, Inst +13 dBuMaximum input level, +13 dBu, Gain 12 dB: Line +1 dBu, Inst -5 dBuInput impedance: Instrument 1 MOhm. Line 13 kOhm balanced, 9 kOhm unbalancedInput Gain Inst: +6 dBInput mode: Line balanced (TRS), Inst unbalanced (TS)Microphone In 1-2, frontAs AD, but:Input: XLR, electronically balancedInput impedance: 5.4 kOhmGain range: 75 dBMaximum input level, Gain 0 dB: +18 dBuMaximum input level, Gain 75 dB: -57 dBuEIN: -128 dBu A-weighted, 60 dB gain,150 Ohm, 20 Hz – 20 kHzLine In 1-2As AD, but:Input: TRS, electronically balancedInput impedance: 10 kOhm balanced, 5 kOhm unbalancedMaximum input level, Gain 0 dB: +24 dBuMaximum input level, Gain 75 dB: -51 dBuDA, Line Out 1-6, rearResolution: 24 bitDynamic range (DR): 112 dB RMS unweighted, 115 dBAFrequency response @ 44.1 kHz, -0.5 dB: 5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 5 Hz – 45 kHzFrequency response @ 192 kHz, -1 dB: 5 Hz - 89 kHzTHD: < -108 dB, < 0.0004 %THD+N: < -104 dB, < 0.00063 %Channel separation: > 110 dBMaximum output level: +19 dBuOutput: 6.3 mm TRS jack, servo-balancedOutput impedance: 75 OhmOutput level switchable +19 dBu, +13 dBu, +4 dBuDA - Stereo Monitor Output Phones (7-8)As DA, but:Output: 6.3 mm TRS stereo jack, unbalancedMaximum output level at 0 dBFS, High: +19 dBuMaximum output level at 0 dBFS, Low: +4 dBuOutput impedance: 1 OhmMax power per channel @ 32 Ohm load, 0.1% THD: 210 mW (2.6 Vrms, +10.5 dBu)MIDI1 x MIDI I/O via 5-pin DIN jacksGalvanically isolated by optocoupled inputHi-speed mode: Jitter and response time typically below 1 msSeparate 128 byte FIFOs for input and outputDigitalClocks: Internal, ADAT, AES, SPDIF, word clockJitter suppression of external clocks: > 50 dB (2.4 kHz)Effective clock jitter influence on AD and DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterDigital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates: 28 kHz up to 200 kHzDigital InputsAES/EBU1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992High-sensitivity input stage (< 0.3 Vpp)SPDIF compatible (IEC 60958)Accepts Consumer and Professional formatLock range: 27 kHz – 200 kHzJitter suppression: > 50 dB (2.4 kHz)SPDIF coaxial1 x RCA, according to IEC 60958High-sensitivity input stage (< 0.3 Vpp)Accepts Consumer and Professional format, copy protection will be ignoredLock Range: 27 kHz – 200 kHzJitter suppression: > 50 dB (2.4 kHz)ADAT Optical1 x TOSLINK, format according to Alesis specificationStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 channels 24 bit 192 kHzBitclock PLL ensures perfect synchronisation even in varispeed operationLock range: 31.5 kHz – 50 kHzJitter suppression: > 50 dB (2.4 kHz)SPDIF compatible (automatic detection)Word ClockBNCInternal termination 75 Ohm switchableAutomatic Double/Quad Speed detection and internal conversion to Single SpeedSteadyClock guarantees super low jitter synchronization even in varispeed operationNot affected by DC-offsets within the networkSignal Adaptation Circuit: signal refresh through auto-center and hysteresisOvervoltage protectionLevel range: 1.0 Vpp – 5.6 VppLock Range: 27 kHz – 200 kHzJitter suppression: > 50 dB (2.4 kHz)Digital OutputsAES/EBUXLR, transformer-balanced, galvanically isolated, according to AES3-1992Output level Professional 4.5 Vpp, Consumer 2.6 VppFormat Professional according to AES3-1992 Amendment 4Format Consumer (SPDIF) according to IEC 60958Single Wire mode, sample rate 28 kHz up to 200 kHzSPDIF coaxial1 x RCA, according to IEC 60958Output level Professional 1.2 Vpp, Consumer 0.6 VppFormat Professional according to AES3-1992 Amendment 4Format Consumer (SPDIF) according to IEC 60958Single Wire mode, sample rate 28 kHz up to 200 kHzADAT1 x TOSLINK, format according to Alesis specificationStandard: 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 channels 24 bit 192 kHzWord ClockBNCMax. output voltage: 5 VppOutput voltage @ 75 Ohm termination: 4.0 VppOutput impedance: 10 OhmFrequency range: 27 kHz – 200 kHzGeneralPower supply: external power supplyTypical power consumption: 13 WattsCurrent at 12 Volt operating voltage: 910 mA (11 Watts)Dimensions incl. rack ears, full depth (WxHxD): 265 x 44 x 155 mm (10.5" x 1.73" x 6.1")Dimensions without rack ears, body depth (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")Weight: 910 g ( 2.0 lbs)Temperature range: +5° up to +50° Celsius (41° F up to 122°F)Relative humidity: < 75%, non condensingThe Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.
Pricezł6,442.91
Free Shipping
Free Shipping
from Pieńków, Poland
