About this listing

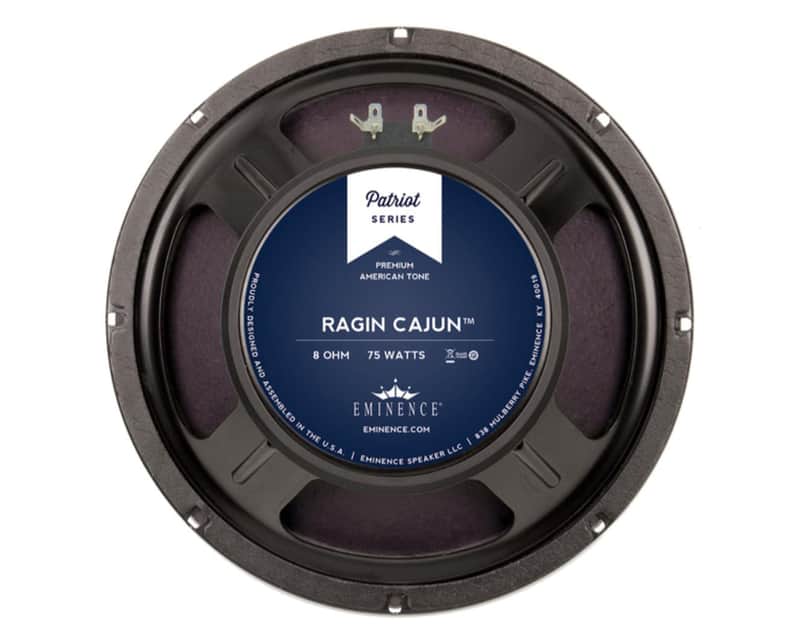

The Eminence Patriot Series Ragin Cajun 75 Watt, 10", 8 Ohm guitar speaker is very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.
SPECIFICATIONS
Nominal Basket Diameter: 10", 254 mm
Nominal Impedance: 8 Ω
Watts: 75 W
Resonance: 84 Hz
Usable Frequency Range: 80 Hz - 5 kHz
Sensitivity: 100.5 dB
Magnet Weight: 30 oz.
Gap Height: 0.31", 7.9 mm
Voice Coil Diameter: 1.5", 38 mm
MOUNTING INFORMATION
Recommended Enclosure Volume: Sealed: Acceptable. Vented: Acceptable
Driver Volume Displaced: 0.039 cu.ft. / 1.1 liters
Overall Diameter: 10.11", 256.8 mm
Baffle Hole DiameterL 9.13", 231.9 mm
Front Sealing Gasket: Yes
Rear Sealing Gasket: Yes
Mounting Holes Diameter: 0.23", 5.8mm
Mounting Holes B.C.D: 9.6", 243.8mm
Depth: 3.8", 96.5 mm
Net Weight: 6.4 lbs, 2.9 kg
Shipping Weight: 8.2 lbs, 3.72 kgs
MATERIALS OF CONSTRUCTION
Coil Construction: Copper voice coil
Coil Former: Polyimide former
Magnet Composition: Ferrite magnet
Core Details: Non-vented core
Basket Materials: Pressed steel basket
Cone Composition: Paper cone
Cone Edge Composition: Paper cone edge
Dust Cap Composition: Zurette dust cap
Found Sound Australia Pty Ltd.
110 Albert St
Brunswick East, VIC 3057
Australia
PriceA$285
+ A$59 Shipping
Only 1 left
Grab it before it's gone
