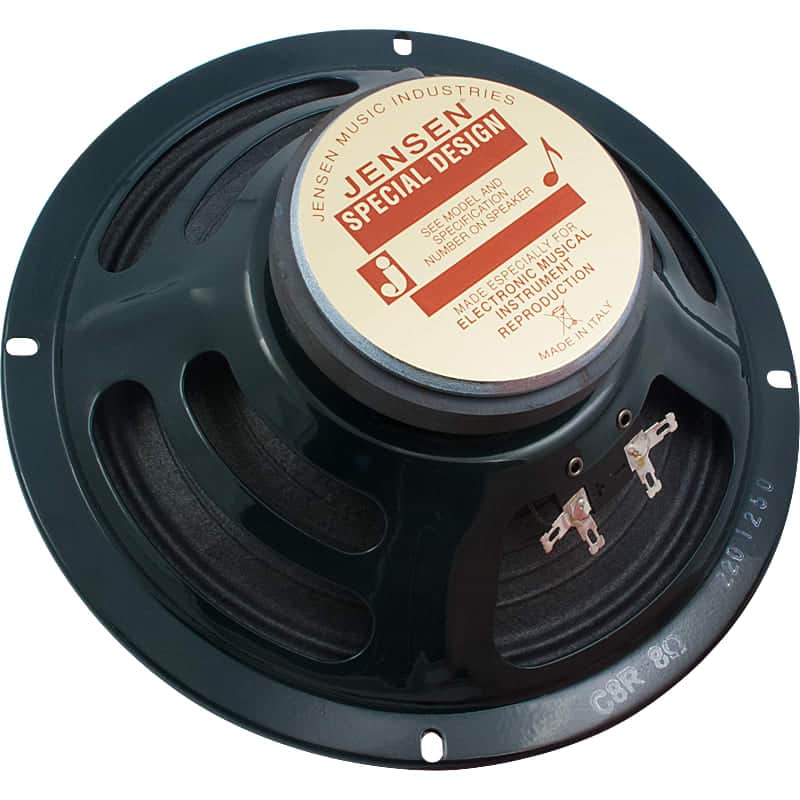

The C8R is the little gem in the Jensen Vintage series. It delivers a solid compact tone that defies its size. Extremely versatile, it finds application in small home and student amplifiers; but with a microphone in front, it is capable of transferring on tape some of the biggest tones ever. Not by chance, the vintage Fender® Champ® amplifiers produced with the C8R speaker are treasured by many players as a great studio tool.
Guitarist Description: Crystal clear tone with brightly shining highs. Responds to overdrive distortion with a bright fuzz lead voice.
Lows: Tight
Mids: Aggressive
Highs: Bright
Overdrive: Edgy
Product MeasurementsDiameter: 8 in.Voice Coil Diameter: 1 in.Depth: 3.0629 in.Outer Diameter: 8.1496 in.Inner Diameter: 7.0275 in.Mounting Hole Bolt Circle Diameter: 7.7559 in.Magnet Assembly Diameter: 3.3858 in.Magnet Assembly Depth: 0.8976 in.Mounting Hole Diameter: 0.1968 in.Nominal Overall Diameter: 207.00 mmNominal Voice Coil Diameter: 25.00 mmFlux Density: 1.00 TVoice Coil Winding Depth: 4.00 mmMagnetic Gap Depth: 6.00 mmMagnet Type: FerriteVoice Coil Winding Type: CopperVoice Coil Former: KaptonCone Material: PaperSurround Material: Integrated PaperDust Dome Material: Solid PaperBasket Material: Pressed Sheet SteelSurround Treatment: YesVoice Coil DC Resistance (Re): 6.73 ΩResonance Frequency (ƒS): 126.00 HzMechanical Q Factor (QMS): 10.29Total Q Factor (QTS): 1.80Mechanical Moving Mass (MMS): 9.00 gMechanical Compliance (CMS): 176.00 µm/NForce Factor (BxL): 4.70 Wb/mEquivalent Acoustic Volume (VAS): 11.40 litersLinear Displacement, maximum (XMAX): 1.00 mmReference Efficiency (nO): 1.03 %Diaphragm Area (SD): 213.80 cm2Losses Electrical Resistance (RES): 37.00 ΩVoice Coil Inductance @ 1 kHZ (LE): 0.43 mHRated Power: 25.00 WMusical Power: 50.00 WSensitivity @ 1W, 1m: 93.00 dB
Price$61.50
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
