About this listing

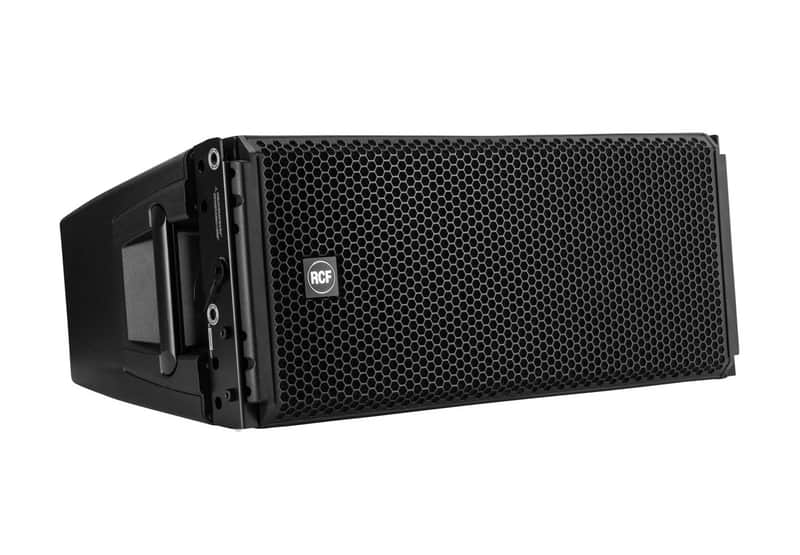

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system
Class-D Amplifiers
RCF's Class-D power amplifier technology combines performance and efficiency into a lightweight solution. HDL amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid, machined aluminum structure, which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All HDL amplifiers present a switch-mode power supply section to produce maximum output and minimum weight.
FiRPHASE Technology
RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology conceived for delivering transparent sound, absolute clarity, and perfect stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude, and phase patterns while ensuring minimum system latency.
RDNet-Controlled DSP
The remote-controlled DSP continuously monitors the levels, soft limiter, and temperature of each amplifier. One system engineer can carry out many functions from the RCF RDNet Networked Monitoring and Control Software:
Monitor the entire system and each component
Test individual components
Read out tilt angles of individual modules with the built-in inclinometer
Group modules together in arrays and create separate zones inside the array
Design and control arc and end-fire subwoofer arrays in just a few clicks
Adjust gain and delay
Set equalizers including three adjustable FiRPHASE filters for mid to high frequencies
Set Air Compensation for a single cabinet or groups to compensate the air loss on long-throw applications
Save and recall system presets
Linear High-Frequency Response
RCF ND940 titanium compression driver with 4" diaphragm and 1.4" exit throat handles frequencies above 680 Hz. The custom 4 PATH–designed waveguide allows a precise coverage of 100° x 15° while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from 680 Hz to the highest audible frequencies.
Efficient and Controlled Bass
Dual 10" neodymium woofers feature water-resistant, fiber-doped cones, polycotton M-roll surrounds, and hyper-vented magnetic structures. Low-frequency reproduction extends down to 50 Hz.
Lightweight and Strong Cabinet
The sturdy composite polypropylene enclosure boasts a heavy-duty front grille and employs a rigging concept inspired by the RCF HDL-50A. Compared to its acoustical power, it has a low weight for easy handling and flying. The integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting with 0.2° angles. The angle can be adjusted beforehand to hang the system on the ground and automatically slip into the correct position when pulling up the array. Up to twenty HDL 30-A modules can be fastened on a single flybar.
Product Specifications:
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 137 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 15°
Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
Woofer: 2 x 10'' neo, 2.5'' v.c
Input Signal: bal/unbal
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: +4 dBu
Crossover Frequencies: 680 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Preset, RDNet bypass
RDNet: Yes
Total Power: 2200 W Peak, 1100 W RMS
High Frequencies: 600 W Peak, 300 W RMS
Low Frequencies: 1600 W Peak, 800 W RMS
Cooling: Forced
Connections: Powercon IN/OUT
Safety Agency: CE compliant
Hardware: Array fittings
Handles: 2 Side
Color: Black
Height: 293 mm / 11.54 inches
Width: 705 mm / 27.76 inches
Depth: 502 mm / 19.76 inches
Weight: 25 kg / 55.12 lbs Shipping Height: 365 mm / 14.37 inches
Shipping Width: 800 mm / 31.5 inches
Shipping Depth: 550 mm / 21.65 inches
Shipping Weight: 28.2 kg / 62.17 lbs
