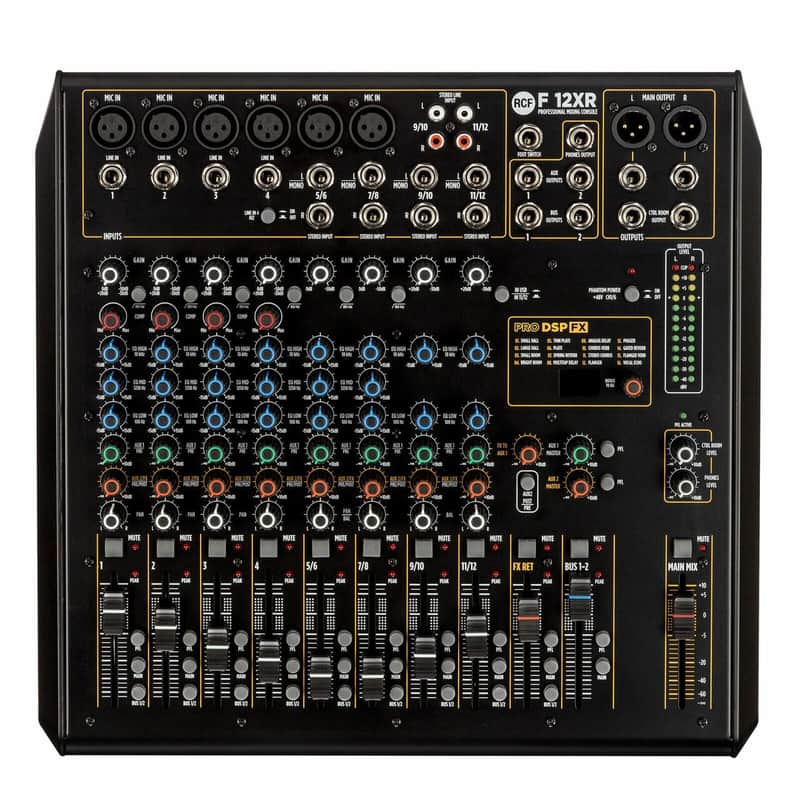

RCF F 12XR 12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDINGSturdy Metal ChassisPRO DSP FX onboard with 16 presetsStereo Recording and Playback via USB portBalanced main output audio path from input to output4 single control compressorsMono channels provided with 3-band EQ. 2-band EQ on stereo channels.Robust, compact and attractive design.Designed and Engineered in ItalyInternal Universal Power SupplyThe F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.SPECIFICATIONSElectrical specifications FREQUENCY RESPONSE:20 Hz ÷ 20 kHz THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):<0,02% A-WeightedPOWER SUPPLY:InternalVOLTAGE REQUIREMENTS:100 V - 240 VPOWER CONSUMPTION (W):24 WInputs GAIN RANGE:0 dB ÷ -50 dBGAIN SELECTION:20 dB ÷ -30 dBHI-Z LINE INPUTS IMPEDANCE (MOHM):1 MohmHI-Z LINE INPUTS:1INPUT NOISE LEVEL (DBU A-WEIGHTED):-124 dBu A-WeightedMIC INPUTS IMPEDANCE (KOHM):14k ohmLINE:4LINE INPUT IMPEDANCE (KOHM):21k ohmLOW CUT:80 HzMIC:6PHANTOM POWER +48V:YesSTEREO LINE:4STEREO LINE GAIN SELECTION:20 dB ÷ -30 dBSTEREO LINE INPUT IMPEDANCE:15k ohmOutputs MAIN MIX:1CONTROL ROOM:YesFX SEND:1AUX SEND:1AUX OUTPUT:2GROUP OUT:1PHONES:1Outputs specifications MAIN OUT LEVEL (DBU):28 dBuAUX OUT LEVEL (DBU):28 dBuGROUP OUT LEVEL (DBU):28 dBuPHONES OUT IMPEDANCE (OHM):150 ohmCompressors RCF COMPRESSORS:n° 4 Single Control Compressors on Channels 1 to 4EQ INPUT CHANNELS EQ:2 Shelving / 1 GenericDESCRIPTION:High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz ShelvingAuxiliary sends AUX:1 PRE/POSTFX POST:1Internal Effects SEND EFFECTS:1USB audio TYPE:BPLAY TRK:2REC TRK:2SUPPORTED SAMPLE RATE (KHZ):44.1, 48.0 kHzOther features FOOTSWITCH:YesStandard compliance CE MARKING:YesPhysical specifications CABINET/CASE MATERIAL:MetalCOLOR:BlackSize DEPTH:355 mm / 13.98 inchesHEIGHT:97 mm / 3.82 inchesWEIGHT:4.5 kg / 9.92 lbsWIDTH:373 mm / 14.69 inchesShipping informationPACKAGE DEPTH:425 mm / 16.73 inchesPACKAGE HEIGHT:140 mm / 5.51 inchesPACKAGE WEIGHT:5.5 kg / 12.13 lbsPACKAGE WIDTH:400 mm / 15.75 inches
Price$579
