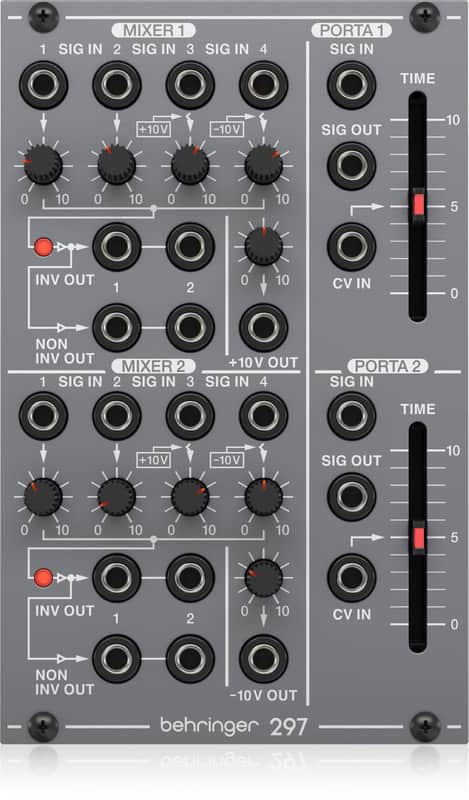

This is the Behringer System 100 297 DUAL PORTAMENTO/CV UTILITIES Module. A portamento and mixer combo and authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price! Mix the 297 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
Combination of amazing portamento controller and CV utilities from the early '80s
Authentic reproduction of original "System 100M" circuitry
2 independent mixers for CV signals with 4 inputs including attenuators
2 portamento controller can be modulated via dedicated CV inputs
2 constant voltage generators supporting +/- 10 V for maximum control
CV mixers each feature 2 normal and 2 inverted outputs for extra versatility
12 controls give you real-time access to all important parameters
Eurorack specs: 16 HP, 70 mA +12 V, 60 mA -12 V
Mix Them All
The 297 features two independent mixers for CV signals. These come with four inputs, each with their own attenuators, where you can connect incoming signals from various different sources. The CV mixers also allow you to send mixes of inputs 1-4 in inverted and non-inverted versions for extra versatility.
Portamento
The portamento sections of the 297 each come with a Time control that can be used to adjust the portamento time of a signal connected via input. The signal can then be sent to any module in your setup for more modulation. An external Control Voltage signal can also be plugged in to control the portamento time.
Inputs
Mixer signal input
Type
8 x 3.5 mm TS jacks, DC coupled
Impedance
>50 kΩ, unbalanced
Max input level
±10 V
Portamento signal input
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
95 kΩ, unbalanced
Max input level
+10 V
Portamento CV input
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
2 MΩ, unbalanced
CV input level
+10 V
Outputs
Mixer outputs, inverted & non inverted
Type
8 x 3.5 mm TS jacks, DC coupled
Impedance
50 Ω, unbalanced
Max output level
±10 V
Portamento signal output
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
250 Ω, unbalanced
Max output level
+10 V
+10 V output
Type
3.5 mm TS jack, DC coupled
Impedance
1 kΩ, unbalanced
Max output level
+10 V
-10 V output
Type
3.5 mm TS jack, DC coupled
Impedance
1 kΩ, unbalanced
Max output level
-10 V
Controls
Mixer input level
-∞ to unity gain
Portamento time
10 ms to 3 s
+10 V output voltage control
0 V to +10 V
-10 V output voltage contro
0 V to -10 V
Power
Power supply
Eurorack
Current draw
70 mA (+12 V), 60 mA (-12 V)
Physical
Dimensions
38 x 81 x 129 mm
(1.5 x 3.2 x 5.1")
Rack units
16 HP
Weight
0.18 kg (0.4 lbs)
Price$56.90
