MultiWAVEMake Noise MultiWAVE

8-Channel Dual Wavetable Oscillator

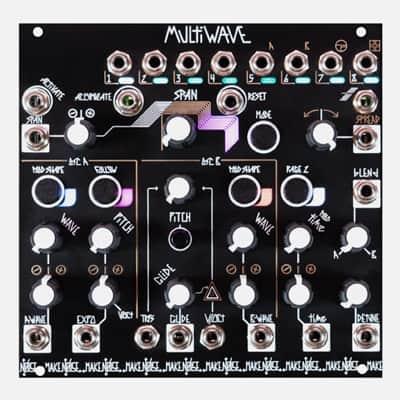

The Make Noise MultiWAVE is an advanced 8-channel dual wavetable oscillator designed for the New Universal Synthesizer System (N.U.S.S.) or any Eurorack modular synthesizer. It delivers massive, dynamic sound design capabilities while maintaining an intuitive, performance-ready control layout.

MultiWAVE uses a single set of controls to generate complex, evolving audio waveforms across eight independent channel outputs. Each channel contains two fully independent wavetable oscillators (Osc A and Osc B), each with variable frequency, modulation, and wavetable position.

When paired with modules such as QXG and PoliMATHS, MultiWAVE becomes the core of an 8-channel hybrid polysynth, offering deep sonic flexibility and polyphonic control within the modular environment.

Key Features

• 8-channel dual wavetable oscillator with shared control interface
• Two independent oscillators (A & B) per channel with individual modulation
• Four Follow Modes for flexible sequencing — control oscillators together or independently
• Polyphonic activation from monophonic sources via Modulation Dissemination, Span, Spread, and Accumulate modes
• Variable timbre per channel using Spread and Modulation Dissemination
• Independent 1V/oct inputs per oscillator plus global transpose
• Built-in polyphonic quantizer for tuned harmonic control
• Polyphonic detune and glide with full modulation capability
• Functions as a Harmonic Oscillator with detune set fully clockwise
• Built-in MultiMod LFO for wavetable modulation
• Independent modulation depth and shape per oscillator
• Per-voice modulation time and depth variation via Spread and Modulation Dissemination
• Ships with custom Make Noise wavetables derived from Make Noise modules
• Smooth interpolation between waveforms
• Compatible with WaveEdit-format wavetables
• Each wavetable includes 64 waves; stores 8 banks of 8 wavetables
• Voltage-controllable Span modes for activating channels
• Channel Index, Round, and Parallel modes for flexible voice allocation
• Output header for direct patching to two QXG modules

Specifications

• Width: 26 HP
• Max Depth (incl. power cable): 43 mm
• Power Consumption:
• • +12V: 250 mA
  • −12V: 5 mA
