AUDIO PERFORMANCE SIGNATURE KS 3.0 2019 - BIANCO

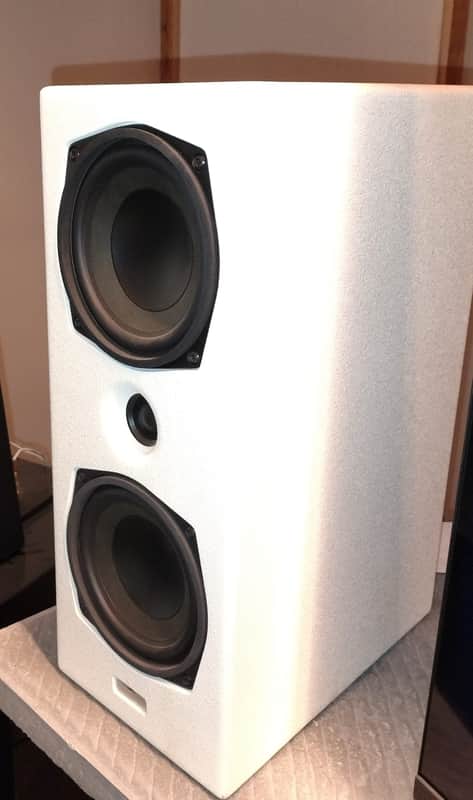

The SIGNATURE KS3.0 is a very compact bi-amplified active nearfield monitor system with performances comparable to much larger systems. The SIGNATURE KS3.0 is a high precision device with excellent efficiency and low distortion providing a very precise stereo imaging.

SIGNATURE KS3.0 contains a twoo 6.5” neodymium long excursion and low distortion bass cone driver (LF) and a 1” fabric dome tweeter (HF) loaded by an advanced waveguide. The KS3.0 built-in electronics package features a new lightweight, two channel class D audio power amplifier designed specifically for Self-Powered products.The amplifier module is a sophisticated switch mode power supply, class-D amplifier design capable of delivering more than 650W RMS (500W@4 ohm Low, 150W@8 ohm Hi) and adding only 2kg to the weight of the cabinet..

It incorporates a complete networked 96KHz digital signal processing (DSP) providing loudspeaker specific filtering, EQ, delays and protection functions. Sophisticated amplifier protection systems continuously monitor all aspects of performance to ensure that the amplifier and associated drivers are always working within their safe operating areas.

Key features

• High efficiency
• Low distortion
• Precise stereo imaging
• FIR filtering

Frequency response (1):  40-21'000HZ +-3dB

Phase response: 350Hz - 18KHz +-10°

Maximum peak SPL (2):   123dB

Coverage :  H 120° x  V 80°

Transducers

Low frequency:   2x 6.5 inch, Neodymium long excursion, low distortion cone driver

High frequency:   1x 1 inch dome tweeter, fabric diaphragm loaded with Audio Performance waveguide

Output power (low) (5):   500W RMS

Output power (high) (5):  150W RMS

THD, DIM, SMPTE:   <0,05%
