Power adapter not included! Requires existing Strymon power system

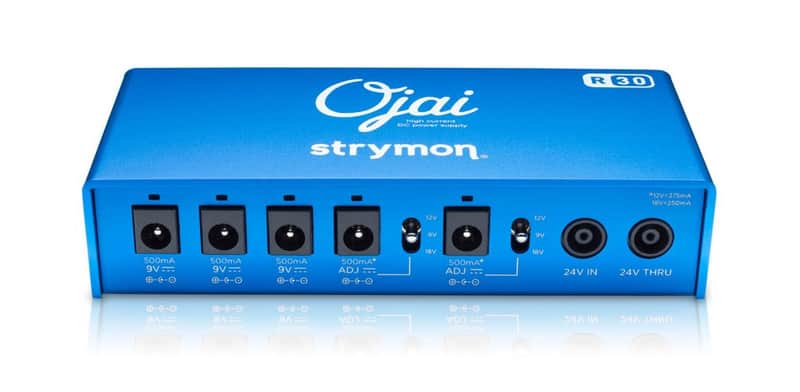

Power your pedals with Ojai R30 - the highest horsepower, most technologically advanced effects pedal power supply of its size. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow. It’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.
With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.
Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to the Strymon Zuma power supply (sold separately).
Do you have pedals that require 12V or 18V? Ojai R30 has you covered. Two channels have selectable 9, 12, or 18V output voltages.
Some analog pedals designed for 9V operation may provide higher output and/or more clean headroom when run at higher voltages such as 12V or 18V. However, others will simply start smoking and melting, so please check with the manufacturer of your pedal before operating at a higher-than-standard voltage!
Ojai R30’s ultra-low profile design means that it can fit under just about any pedalboard. It also features built in threaded hardware for easy mounting.
Specs:
5 high-current, fully isolated 9V outputs with center-negative polarity:
3 dedicated 9V outputs (500mA)
2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
500mA per output powers nearly any pedal
24V Thru jack allows connection to additional Strymon Ojai (sold separately)
5 individual custom transformers (one per channel) deliver clean, consistent power
Worldwide power compatibility ensures no-hassle international touring
Energy efficient, compact design
Lightweight and rugged anodized midnight blue aluminum chassis
Ultra-low profile design fits under nearly any pedalboard
Designed and built in the USA
Dimensions: 5.1″ x 2.3″ x 1.15” (130mm x 58mm x 29mm)
Weight: 6 oz. (171g)
