About this listing

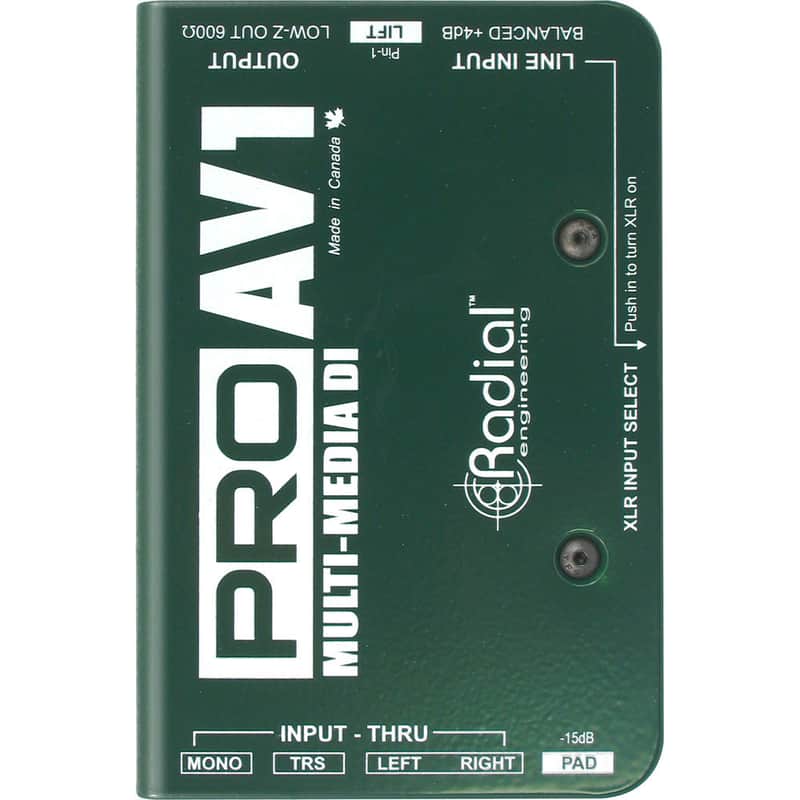

The Radial ProAV1 Passive Direct Box is specifically developed with the audio-video integrator in mind, where Swiss Army knife' connectivity is required to meet on-the-fly demands of AV rentals and installations. Featuring a variety of stereo inputs that are summed mono via a resistive mixer, the ProAV1 greatly simplifies signal management. The Radial ProAV1 Passive Direct Box comes equipped with a 'Swiss Army' array of connectivity options including 1/4" inputs for instruments, RCA and 3.5mm (1/8") connectors for CD players, iPods, video decks and computers. The Radial ProAV1 Passive Direct Box eliminates the need for various adaptors, The Radial ProAV1 also features a female XLR input for interfacing equipment with +4dB professional signal levels. The front panel connectors can also be used as thru-puts to allow multiple patch points. Custom wound Eclipse ET-DB2 transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems. These features combine to make the Radial ProAV1 'must have' problem solver for the audio-visual technician's tool kit. Radial ProAV1 Passive Direct Box Features 'Swiss Army knife' direct box for multi-media Easy to use, ultra-quiet passive design Eliminates ground loops that cause hum and buzz Handles huge transients without distortion Great-sounding, fl exible passive DI High performance custom-wound transformer XLR, 1/4, RCA and 3.5mm inputs Built-in stereo to mono merge function -15dB PAD for wide range of input levels Converts hi-Z consumer to low-Z mic-level Connect a stereo source to a mono channel Unbalanced audio from CDs, laptop, VCRs Balanced +4dB audio sources Completely passive, no power needed Ultra-tough 14 gauge steel enclosure Radial ProAV1 Passive Direct Box Applications Consumer Audio to PA System - The Radial ProAV1 is perfect for interfacing consumer audio electronics with pro PA and recording equipment. The dual phone, RCA and 3.5mm inputs on the Radial ProAV1 sum the left and right stereo channels to a mono output. Standard DI For Instruments - The Radial ProAV1 works just like standard direct boxes for passive and active musical instruments like guitars, basses, and keyboards. You can thru-put the signal to an on-stage amp while transformer isolation keeps things quiet. Radial ProAV1 Passive Direct Box Specifications Technical Specs: Audio Circuit Type: Passive, transformer based Number of Channels: Single channel (mono) Frequency Response: 20Hz ~ 18.5KHz (± 0.2dB) Dynamic Range: 128dB Maximum Input: +18dB @ 20Hz Total Harmonic Distortion: 0.01% from 20Hz~20kHz @-10dB Phase Deviation: 1° @ 100Hz; 8° @ 20Hz CMR Ratio: 100dB @ 60Hz Input Impedance: 140k Ohms, unbalanced Output Impedance: 150 Ohms, balanced Features: Transformer: Eclipse ET-DB2, 12:1 ratio Shield: Faraday, MuMETAL® can Input Pad: -15dB Merge: Sums left & right to mono 180° Polarity Reverse: Inverts absolute phase Ground Lift: Disconnects pin-1 at XLR output XLR Configuration: AES standard (pin-2 hot) Connectors: 1/4", RCA, 3.5mm, in & thru, XLR-M out General: Construction: 14 gauge steel chassis & shell Finish: Durable powder coat Size (W x H x D): 3.25 x 5 x 1.875 Weight: 0.73kg (1.6 lbs) Shipping Size W x H x D: 102 x 76 x 165mm (4.00" x 3.00" x 6.50") Shipping Weight: 0.87 kg (1.92 lbs) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Radial ProAV1 Passive Direct Box Includes Radial ProAV1 Passive Direct Box User Guide 3 Year Warranty
PriceA$229.46
+ A$146.57 Shipping
A$88.81 shipping when combined
14-Day Return Policy
Enjoy peace of mind with your new gear
