About this listing

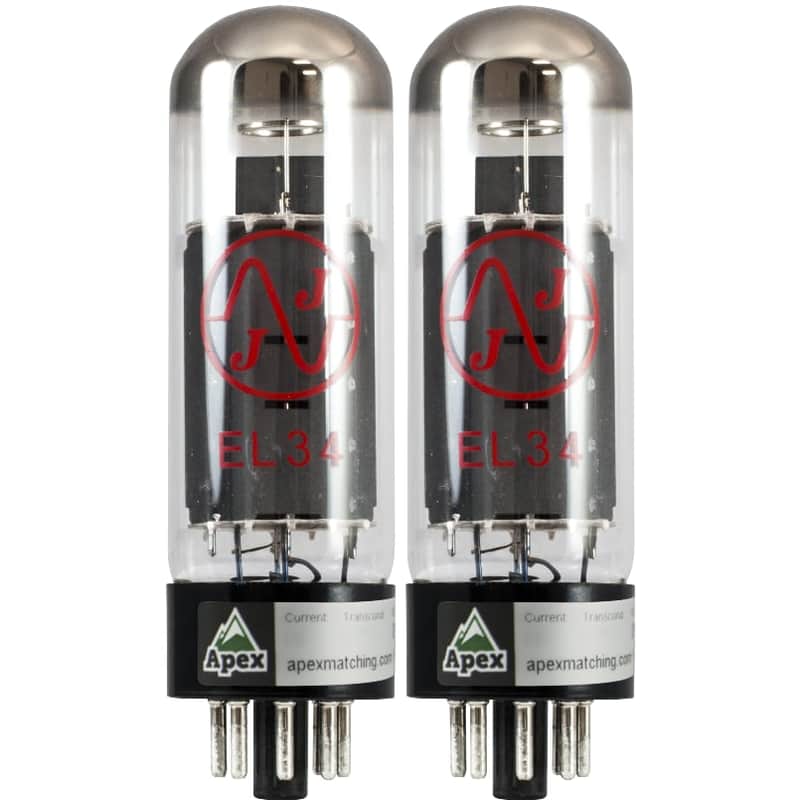

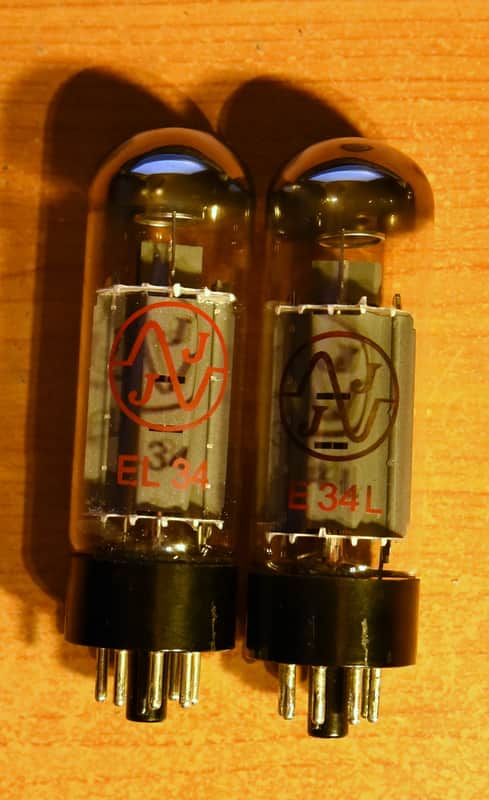

The JJ Electronic EL34 is another classic from JJ. This tube features a rugged construction leading to an incredibly reliable EL34 with astonishing tone. Overall the sound is nicely balanced with tight lows, a rich and dynamic mid range and clear highs. The JJ EL34 is a great replacement for guitar amplifiers and stereo amps as well.
These tubes are Apex® Matched.Product MeasurementsItem Diameter: 33.3 mmItem Height: 112 mmBody Height: 98 mmFilament Voltage (Uf): 6.3 VFilament Current (If): 1.5 APlate Voltage (Ua): ≤ 800 V, 250 V typicalPlate Current (Ia): 100 mAGrid Voltage 1 (Ug1): -10 V to -13.5 V typicalGrid Voltage 2 (Ug2): ≤ 450 V, 265 V typicalGrid Voltage 3 (Ug3): 0 V typicalGrid Current 2 (Ig2): 14.9 mATransconductance (S): 11 mA/VInternal Resistance (Ri): 15 kΩGain (μg2/g2): 11Plate Dissipation (Wa): ≤ 25 WGrid 2 dissipation (Wg2): 8 WCathode Current (Ik): ≤ 150 mAHeater to cathode voltage (Uk/f): ≤ 100 VHeater to cathode resistance (Rk/f): 20 kΩGrid capacitance (cg1): 15.5 pFPlate Capacitance (ca): 10 pFGrid to Plate Capacitance (ca/g): 1.3 pF
Price$57.63
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
