About this listing

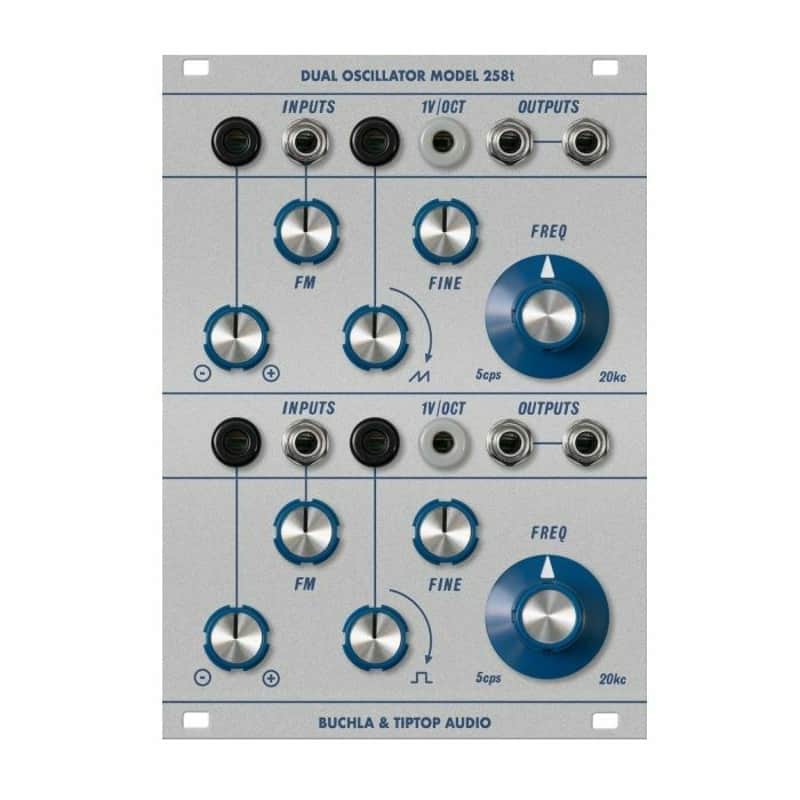

Best value Buchla module ever? An official Buchla module produced by TipTop Audio, the 258t is a dual triangle-core oscillator, with sine/sawtooth wave shapes in the top half and sine/square at the bottom. Bags of character.
Supplier's Notes:
Two independent voltage-controlled oscillators. Each has one processing input, a frequency modulation input and a 1V/oct input.
Waveshapes, as well as frequency, can be voltage controlled. Model 258 oscillators feature low sine wave harmonic content, negligible settling error, and high short and long-term stability, even with rapidly changing ambient temperatures.
Trimmers:
There are three trimmers for each oscillator on the back of the module:
1V/oct is the octave tracking trimmer and is set at the factory using high precision instruments.
SHAPE is the trimmer that set the sine wave, for the lower harmonic content of the sine wave.
VC WAVE SHAPE sets the response of the waveshaper to the incoming control voltage. Both SHAPE and VC WAVE SHAPE trimmers are used to adjust the sine wave purity.
Size: 18HP
Depth: 45mm
Power: +12V 70mA / -12V 40mA
Original Price£185
6% price drop
New Price£173.99
+ £5.71 Shipping
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
