The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR M boasts scorching sound, stunning style and grin-inducing playing feel and performance.
Neck
Fingerboard MaterialMaple
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
HeadstockLicensed Fender® Stratocaster®
Neck ConstructionBolt-On with Graphite Reinforcement
Neck FinishOiled
Neck MaterialMaple
Neck ShapeSpeed Neck with Rolled Fingerboard Edges
Number of Frets22
Nut MaterialFloyd Rose® 1000 Series Locking
Nut Width1.6875" (42.86 mm)
Position InlaysBlack Dot
Side DotsBlack
String NutFloyd Rose® 1000 Series Locking
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel

Body
BodyAlder
Body FinishSatin
Body MaterialAlder
Body ShapeSan Dimas® Style 1

Hardware

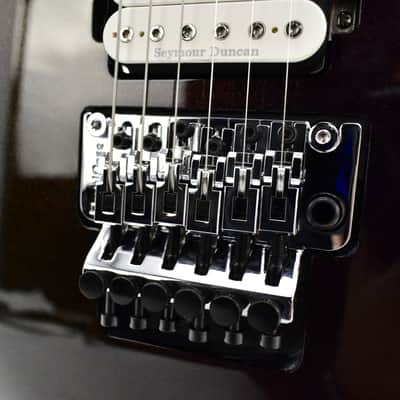

BridgeFloyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Control KnobsKnurled Flat-Top
Hardware FinishChrome
Neck Plate4-Bolt Serialized
Pickup CoversParchment
Strap ButtonsStandard
String TreesFloyd Rose® Retainer Bar
StringsNickel Plated Steel (.009-.042 Gauges)
Switch TipParchment
Tremolo ArmFloyd Rose® 1000 Series Locking
Tremolo BlockBrass
Tuning MachinesCharvel®-Branded Die-Cast

Electronics
Bridge PickupCustom Seymour Duncan® Full Shred™ SH-10B
ControlsVolume (Push/Pull Coil Split), No-Load Tone
Neck PickupCustom Seymour Duncan® Alnico II Pro™ APH-1N
Pickup ConfigurationHH
Switching3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
