About this listing

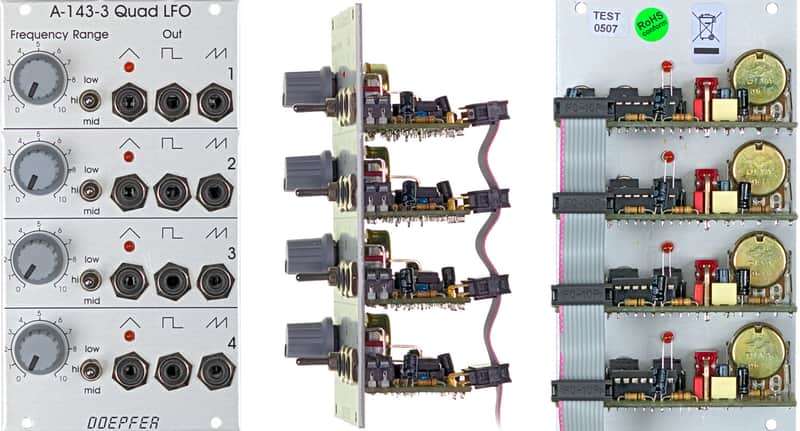

Module A-143-3 is a low-cost four-fold modulation oscillator, often called LFO (low frequency oscillator). Like the other modules of the A-143 series (A-143-1 and A-143-2) not a very "exciting" module, just a bread-and-butter device and a simple demon for work. The module contains four simple LFOs. Each LFO is equipped with three waveform outputs: triangle, rectangle and sawtooth. The frequency of the sawtooth output is twice the frequency of the other outputs. A three-way switch is used to select one of three frequency ranges mid-low-high, spanning from about two cycles per minute at the lowest, to moderate audio frequency at the highest (about 5 kHz).
If other waveforms or additional LFO features are required (e.g. reset input, adjustable waveform, voltage controlled frequency) the LFO modules A-145, A-146 and A-147 are available.
Technical Specs.:
Width: 14HP
Depth: 40mm
Current Draw: 70mA
Price€137
Incl. VAT
+ €10.80 Shipping
€1.20 shipping when combined
Only 1 left
Grab it before it's gone
30-Day Return Policy
Enjoy peace of mind with your new gear
