About this listing

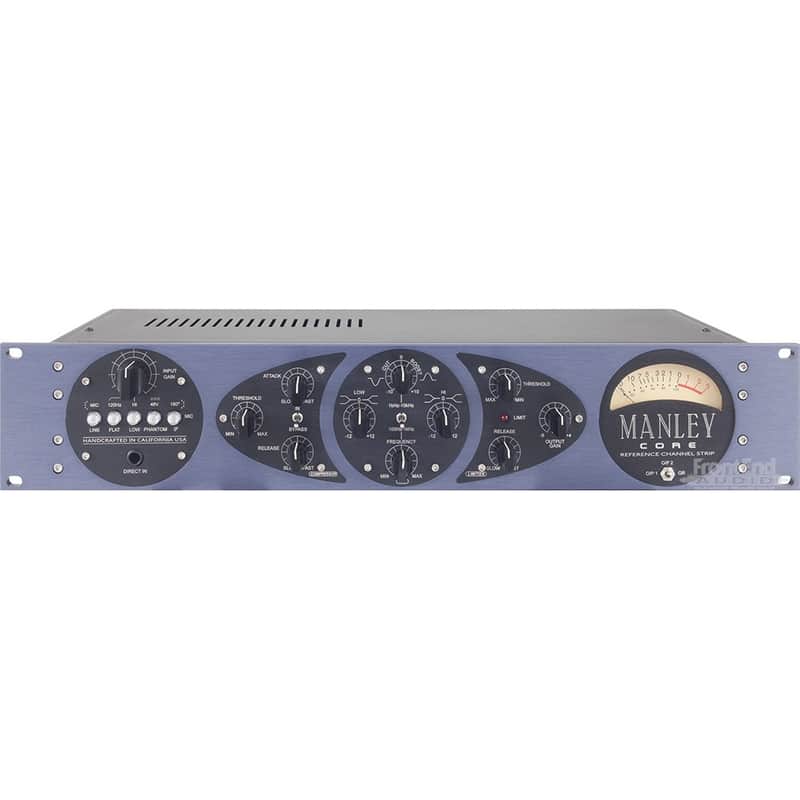

The Manley Core Channel Strip is comprehensive, user-friendly channel-strip, and stacked with features and sound quality based on the legendary star of studio and world-tour; the Manley VOXBOX... but a few sprinkles of magic from the Manley SLAM! are dashed in for a unique gourmet sonic flavor.
The idea of the Manley Core Channel Strip is to provide a unit that provides a fantastic sound already with other controls bypassed. But all of the sonic shaping needed to bring a vocal right to the forefront of your mix, are right there and easy to use thanks to a simple Left to Right signal flow layout. Anyone who has used a VOXBOX never said, "Gosh! That was simple!" Perhaps it was simple if you were a seasoned (if also a bit crusty and cantankerous) engineer... but it takes a minute to catch your bearings due to the ability to access each individual component - features that aren't necessarily used every day. 90% of users want a linear signal path with the added ability to also record a dry preamp and then process line-level signals after the fact. CORE lets you do this, without losing any sonic integrity over the VOXBOX.
Last, but certainly not least in it's significance - All which is contained within the CORE, clocks in at a low price hardly seen in the Manley line. Now a comprehensive set of Manley's legendary tools complete with their reputation for quality of build and sound, is now within reach of home studio owners. But CORE also appeals to the desires of professional recordists, as well. CORE is one channel strip poised to make big gains for all who have one.
Manley Core Channel Strip Features
Comprehensive channel strip based on the legendary , but with a more simple layout, and a nice price.
Class A tube mic preamplifier
Hand-wound transformers in Manley's standard tradition
Direct Injection - A longtime favorite of discriminating DI-users
ELOP compressor circuit with fixed 3:1 ratio
The 3-Band Equalizer uses a very good sounding Baxandall-curve style LOW and HIGH frequency shelving bands complete with a sweepable mid-band
Ultra-Fast attack FET limiter before output. Ensures no converter clipping will spoil a take
Metering for input, output, and gain reduction (comp)
Manley Core Channel Strip Specifications
Mic Preamp:
Type: Class A Valve
Phantom Power: +48V
Hi-Pass Filter: 120Hz
Gain Modes: Hi-Low
Line Input: Yes
Polarity / Phase: O-degrees, 180-degrees
Compressor:
Type: ELOP, Valve
Ratio: 3:1
Controls: Threshold, Attack, Release
Equalizer:
High and Low: Baxandall Shelving, fixed frequency
Mid-Band: Sweepable within two ranges
100Hz - 1kHz
1kHz - 10kHz
Limiter:
Type: FET
Attack: Ultra-Fast, fixed
Release: Adjustable
Threshold: Adjustable
Metering:
Input
Output
Gain Reduction
Manley Core Channel Strip Includes
Manley Core Channel Strip
Power Cable
Manufacturer Warranty
