About this listing

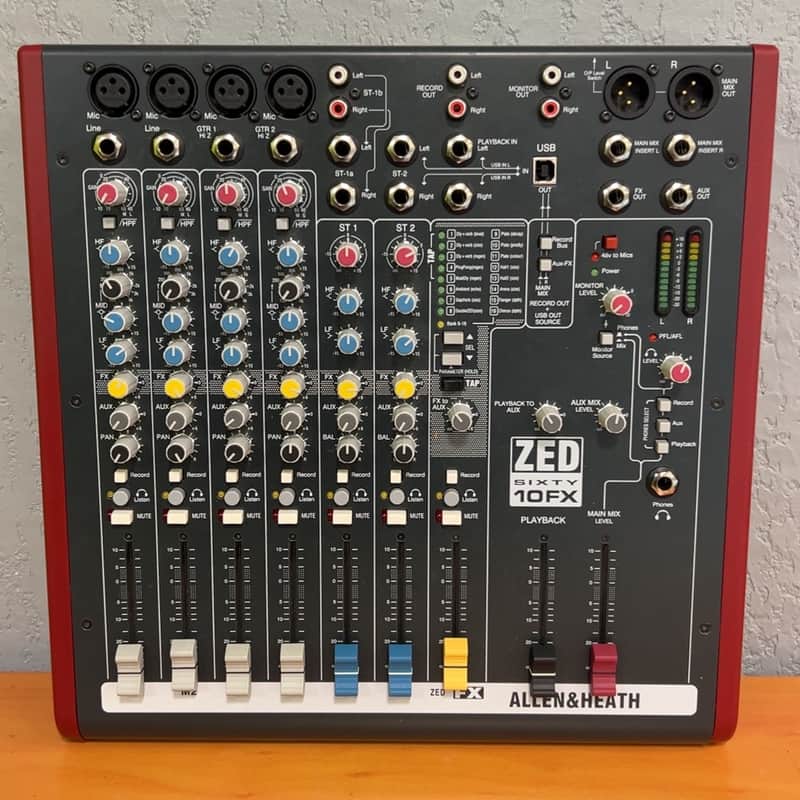

The Allen & Heath ZED60-10FX delivers the same audio specifications as the ZED-10FX but replaces rotary level controls with professional 60mm faders for more precise and intuitive level management. With 4 mono mic/line DuoPre channels, 2 stereo line channels, Hi-Z guitar inputs, 3-band EQ with sweepable MusiQ mid, 16 built-in effects, and a stereo USB interface, the ZED60-10FX bridges the gap between compact portability and fader-based workflow.Inputs and Outputs
4 mono mic/line channels with XLR inputs (DuoPre preamps)
2 stereo line channels (1/4" TRS, ST1 also accepts RCA)
Hi-Z instrument inputs on channels 3-4 (Class A FET high impedance)
USB stereo return channel
2 aux sends (1 pre-fade AUX, 1 post-fade FX)
Main stereo output on XLR L/R with insert point
RCA record outputs, RCA monitor outputs
1/4" FX output, 1/4" AUX output
Stereo bus insert (send/return)
1/4" headphone output
+48V global phantom power
EQ and Processing
3-band EQ with sweepable mid (MusiQ) on mono channels
2-band EQ on stereo channels
16 built-in effects: reverbs, delays, chorus, flange, doubler
Recording
2-in / 2-out USB 1.1 audio interface
16-bit resolution, 32/44.1/48 kHz sample rate
Specifications
Faders: 60 mm professional faders on all channels
Metering: 12-segment L/R peak meters
Dimensions: 336 x 95 x 346 mm (13.2" x 3.7" x 13.6") W x H x D
Weight: 3.8 kg / 8.4 lbs
Rack Mount: Optional (ZED60-10FX-RK19)
In the Box
ZED60-10FX Mixer
Power Cable
USB Cable
User Guide
PriceC$649
14-Day Return Policy
Enjoy peace of mind with your new gear
