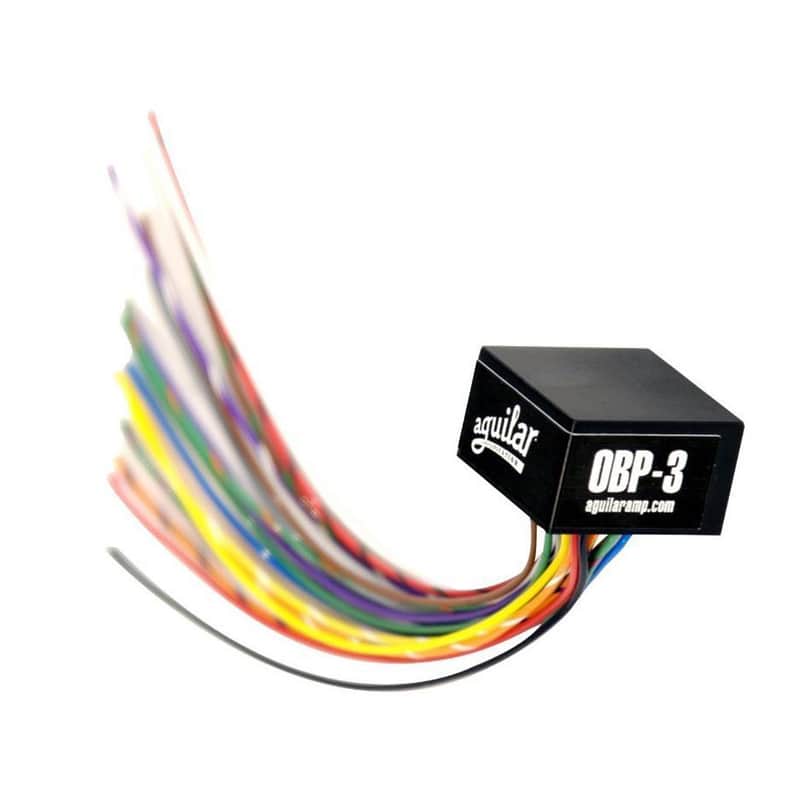

Aguilar OBP-3TK/PP On-Board Bass PreampThe OBP-3 is Aguilar's most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a mini-toggle or internal dip-switch for midrange frequency selection. The OBP-3TK/PP includes separate Treble, Mid, and Bass pots. The Mid pot is push/pull for Midrange frequency selection.Features:• Bass control: plus/minus 18 dB @ 40 Hz.• Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center.• Treble control: plus/minus 16 dB @ 6.5 KHz.• Input impedance: 1 meg ohm• Output impedance: 100 ohm 9 or 18 volts operation. Additional 6dB with 18 volts.• Distortion: .019 into 10k ohm load• Noise: -95 dBm unweighted.• Battery life: 324 hours• Wire lead length: 6.50 inches• Low noise discrete FET input stage, center detent 50 K linear pots,with a dual concentric pot available.• Dimensions: 0.98"W x 0.98"L x 0.59"D
Price$179.99
