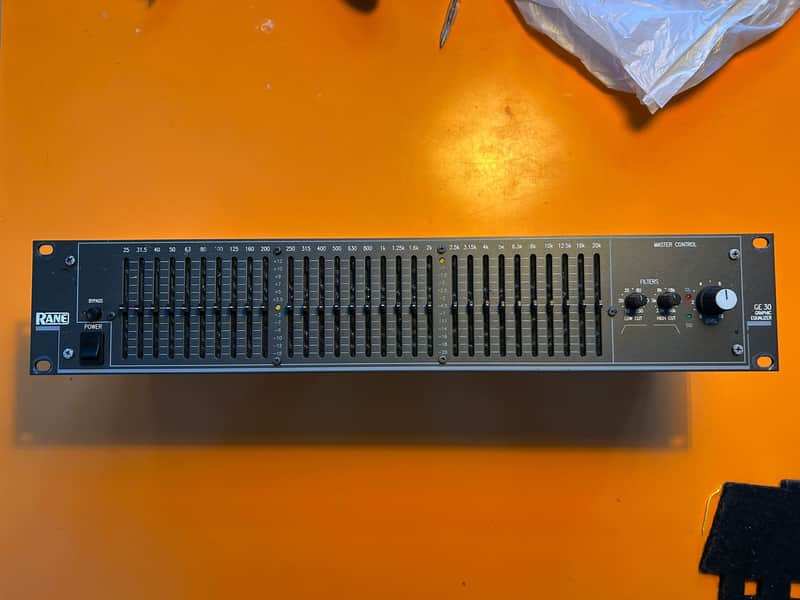

Rane GE30 Single-Channel One-third Octave Graphic Equalizer

Reasonably clean, spent all its life in a rack - we have 5 others in stock of this from same rack, this sale is only for one item, we offer 30% discount if you buy more than one
This requires a RANE power supply, this one does not have the what some call noisy internal power supply.

Manufacturers description:
The Rane GE 30 is a single-channel, one-third octave equalizer. Housed in a two rack-space unit, the GE 30 features long throw, 60 mm high resolution slide controls on each filter band ensuring good resolution over their entire range. The operating mode of the GE 30 is either Boost/Cut, or by pressing a button on the rear panel, may be Cut-Only. Another pushbutton on the rear panel allows the operator to select Active Balanced or Transformer Coupled balanced output. The active filter sections of the GE 30 are of the constant bandwidth (Constant-Q) variety. The bandwidth of each individual filter is guaranteed to be narrow enough to prevent unwarranted interaction between filters, yet wide enough to produce exactly the type of correction curve demanded by even the most unusual acoustic surroundings.

The bandwidth has also been carefully selected to ensure that two adjacent filters may be used to achieve curves with peaks in between the center frequencies of the filters (interpolating characteristic). This differs dramatically from conventional designs of the past. Earlier designs (dating back as far as 50 years) are encumbered with the unfortunate characteristic of changing bandwidth with changing boost/cut amounts. Front panel controls and indicators, aside from the 30 filter level controls include an overall Level control as well as signal present and overload indicators. Sweepable bandlimiting filters are provided on the front panel, covering a range of 10 Hz to 250 Hz on the low end and 3.1 kHz to 40 kHz on the high end. The rear of the unit provides an XLR balanced input, an XLR balanced output and screw terminals duplicating both

• 1/3-Octave Constant-Q Bandwidth
• Interpolating Filter Response
• Boost/Cut or Cut Only
• Active or Transformer Balanced Output
• Adjustable Low/High Filters
• Power Failure Auto-Bypass
• 60 mm Filter Slide Controls
• Delayed (2 Second) Turn-On
• XLR & Screw Terminal Connectors

#############

Please note that this is a vintage item, it can be shown working on WhatsApp video, there is no implied warranty or guarantee
