About this listing

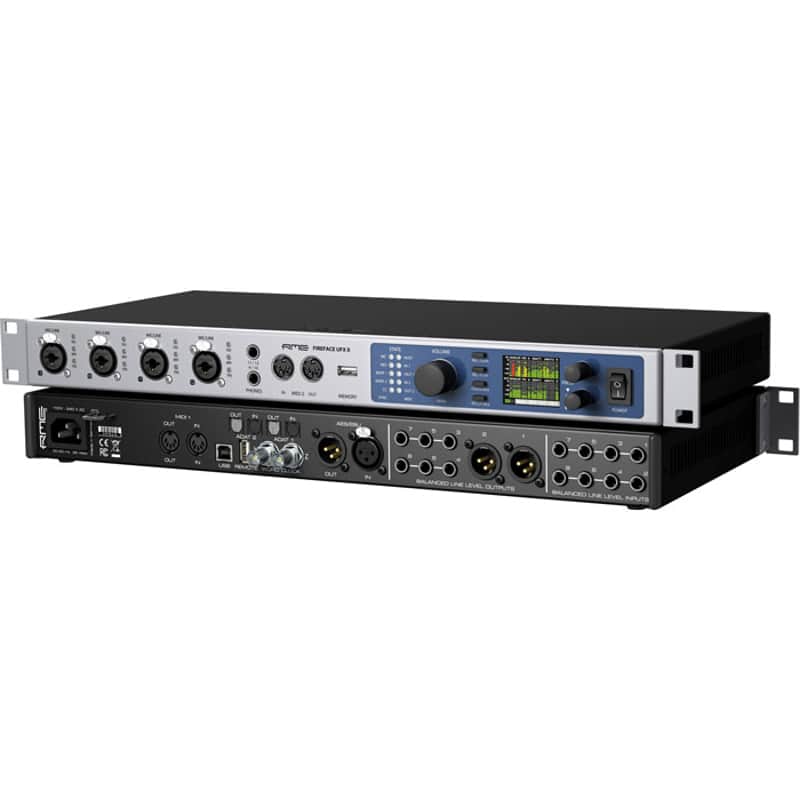

The unique Fireface UFX II is the premier solution to transfer analog and digital audio data directly to a computer from practically any source.Numerous unique features, well thought-out configuration dialogs, an industry-leading mixing engine and monitoring solution, professional DSP effects and class-leading analog circuits with latest digital converters put the Fireface UFX II at the very top of the range of computer-based audio interfaces.SpecsFireface UFX IIAnalogAD, Line In 1-8, rear Resolution AD: 24 bitSignal to Noise ratio (SNR): 113 dB RMS unweighted, 116 dBAFrequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.8 kHzFrequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHzTHD: < -110 dB, < 0.00032 %THD+N: < -104 dB, < 0.00063 %Channel separation: > 110 dBMaximum input level: +19 dBuInput: 6.3 mm TRS jack, electronically balancedInput impedance: 8 kOhm unbalanced, 12 kOhm balancedInput sensitivity switchable to Lo Gain, +4 dBuInput level for 0 dBFS @ Lo Gain: +19 dBuInput level for 0 dBFS @ +4 dBu: +13 dBuVariable gain: 0 to +12 dBMinimum level for 0 dBFS: +1 dBu, -1.2 dBVMicrophone In 9-12, front As AD, but:Input: XLR, electronically balancedInput impedance: 3.4 kOhmSignal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBAGain range: 75 dBMaximum input level, Gain 0 dB: +18 dBuMaximum input level, Gain 75 dB: -57 dBuCLIP LED: 0 dBFS • SIG LED: -60 dBFSInstrument In 9-12, front As AD, but:Input: 6.3 mm TS jack, unbalancedInput impedance: 1 MOhmSignal to Noise ratio (SNR): 114 dB RMS unweighted, 118 dBAGain range: 42 dBMaximum input level, Gain 8 dB: +21 dBuMaximum input level, Gain 50 dB: -21 dBuDA, Line Out 3-8, rearResolution: 24 bitDynamic range (DR): 115 dB RMS unweighted, 118 dBAFrequency response @ 44.1 kHz, -0.5 dB: 5 Hz – 20.8 kHzFrequency response @ 96 kHz, -0.5 dB: 5 Hz – 45 kHzFrequency response @ 192 kHz, -1 dB: 5 Hz - 89 kHzTHD: < -110 dB, < 0.00032 %THD+N: < -104 dB, < 0.00063 %Channel separation: > 110 dBMaximum output level: +19 dBuOutput: 6.3 mm TRS jack, servo-balancedOutput impedance: 75 Ohm unbalanced, 150 Ohm balancedOutput level switchable Hi Gain, +4 dBu, -10 dBVOutput level at 0 dBFS @ Hi Gain: +19 dBuOutput level at 0 dBFS @ +4 dBu: +13 dBuOutput level at 0 dBFS @ -10 dBV: +2 dBVDA - Stereo Monitor Output XLR (1-2) As DA, but:Output: XLR, balancedOutput level switchable 24 dBu, Hi Gain, +4 dBu, -10 dBVOutput level at 0 dBFS @ 24 dBu: +24 dBuOutput level at 0 dBFS @ Hi Gain: +19 dBuOutput level at 0 dBFS @ +4 dBu: +13 dBuOutput level at 0 dBFS @ -10 dBV: +2 dBVDA - Stereo Monitor Output Phones (9-12)As DA, but:Output: 2 x 6.3 mm TRS stereo jack, unbalancedMaximum output level at 0 dBFS, High: +19 dBuMaximum output level at 0 dBFS, Low: +2 dBVOutput impedance: 2 OhmMax power per channel @ 32 Ohm load, 0.1% THD: 210 mW (2.6 Vrms, +10.5 dBu)MIDI2 x MIDI I/O via 5-pin DIN jacksGalvanically isolated by optocoupled inputHi-speed mode: Jitter and response time typically below 1 msSeparate 128 byte FIFOs for input and outputDigitalClocks: Internal, ADAT, AES, MADI, word clockLow Jitter Design: < 1 ns in PLL mode, all inputsInternal clock: 800 ps Jitter, Random Spread SpectrumJitter suppression of external clocks: > 30 dB (2.4 kHz)Effective clock jitter influence on AD and DA conversion: near zeroPLL ensures zero dropout, even at more than 100 ns jitterDigital Bitclock PLL for trouble-free varispeed ADAT operationSupported sample rates: 28 kHz up to 200 kHzDigital InputsAES/EBU1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992High-sensitivity input stage (< 0.3 Vpp) • SPDIF compatible (IEC 60958)Accepts Consumer and Professional formatLock range: 27 kHz – 200 kHzJitter when synced to input signal: < 1 nsJitter suppression: > 30 dB (2.4 kHz)ADAT Optical2 x TOSLINK, format according to Alesis specificationStandard: 2 x 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 2 x 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHzBitclock PLL ensures perfect synchronisation even in varispeed operationLock range: 31.5 kHz – 50 kHz • Jitter when synced to input signal: < 1SPDIF optical (ADAT2)1 x optical, according to IEC 60958Accepts Consumer and Professional formatLock range: 27 kHz – 200 kHzJitter when synced to input signal: < 1 nsJitter suppression: > 30 dB (2.4 kHz)Word ClockBNCInternal termination 75 Ohm switchableAutomatic Double/Quad Speed detection and internal conversion to Single SpeedSteadyClock guarantees super low jitter synchronization even in varispeed operationNot affected by DC-offsets within the networkSignal Adaptation Circuit: signal refresh through auto-center and hysteresisOvervoltage protectionLevel range: 1.0 Vpp – 5.6 VppLock Range: 27 kHz – 200 kHzJitter when synced to input signal: < 1 nsJitter suppression: > 30 dB (2.4 kHz)Digital OutputsAES/EBUXLR, transformer-balanced, galvanically isolated, according to AES3-1992Output level Professional 4.5 Vpp, Consumer 2.6 VppFormat Professional according to AES3-1992 Amendment 4Format Consumer (SPDIF) according to IEC 60958Single Wire mode, sample rate 28 kHz up to 200 kHzADAT2 x TOSLINKStandard: 2 x 8 channels 24 bit, up to 48 kHzDouble Speed (S/MUX): 2 x 4 channels 24 bit 96 kHzQuad Speed (S/MUX4): 2 x 2 channels 24 bit 192 kHzSPDIF optical (ADAT2)Format Consumer (SPDIF) according to IEC 60958Sample rate 28 kHz up to 200 kHzWord ClockBNCMax. output voltage: 5 VppOutput voltage @ 75 Ohm termination: 4.0 VppOutput impedance: 10 OhmFrequency range: 27 kHz – 200 kHzGeneralPower supply: Internal switching PSU, 100 - 240 V AC, 36 WattsIdle power consumption: 19 WattsTypical power consumption: 22-25 WattsDimensions including rack ears (WxHxD): 483 x 44 x 210 mm (19" x 1.73" x 8.5")Dimensions without rack ears (WxHxD): 440 x 44 x 210 mm (17.3" x 1.73" x 8.3")Total depth: 240 mm (9.4”)Weight: 3 kg ( 6.6 lbs)Temperature range: +5° up to +50° Celsius (41° F up to 122°F)Relative humidity: < 75%, non condensing
Pricezł11,016.67
Free Shipping
Free Shipping
from Pieńków, Poland
