The Empirical Labs Pump 500-Series Compressor that has taken the DNA of the Distressor and distilled it into a single 500 space package at an affordable price. This version features a horizontal layout for your horizontal based 500-Series racks.
The Pump is a single-channel, 500 series rack mount Compressor that’s loaded with the kinds of features and performance you’ve come to expect from ELI. This fully analog design has serious heritage and shares family DNA with notable ELI processors that include the renown Distressor, Arousor, and Mike-E products. The Pump is destined to be a “go-to” processor for the creative audio pro with a tool assortment built upon no compromise performance, quality, and value.

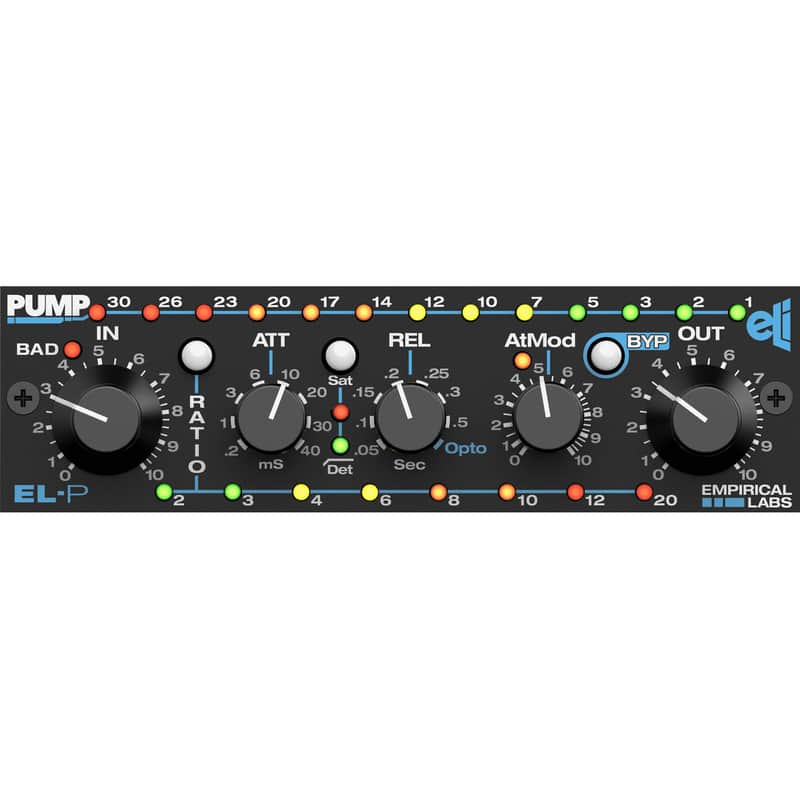

The Pump is simple, concise, and smart looking, with all the right controls and indicators in all the right places. This Compressor stands tall in the ELI family. Starting at the top, there’s an Input trim with clip indicator; 8 selectable compression ratios from 2:1 to 20:1 and everything in between; independent digitally stepped controls for precise recall of Attack and Release selections — including a soft Opto-Coupler style Release. Use the 70Hz High Pass Filter to minimize LF buildup; engage the soft clip function and relish the subtle and harmonious treatment of saturated signals. The unit includes comprehensive Gain Reduction metering and Attack Modification (AtMod) functions to slow the initial onset of the attack envelope and preserve more transient content for greater overall impact — with a Bypass selection to go dry. Brilliant! The final stage, Make Up Gain, brings track level up to balance and blend with the mix perfectly. We’re proud to say the Pump has overachiever traits. Afterall, just look at the family! The Pump is also available in a .
Empirical Labs Pump 500-Series Compressor Features
VCA style compressor circuit
8 ratios from 2:1 to 20:1
Stepped attack and release knobs for easy recall
Attack time ranging from 200µs to 40ms
Release time ranging from 50ms to 500ms
Soft-clipping saturation
AtMod (Attack Modification)
Switchable Detector HP
Empirical Labs Pump 500-Series Compressor Specifications
Frequency Response: 5Hz to 175kHz
Dynamic Range: 125dB from max output (0.5%THD soft clipping) to minimum output
Noise Floor: -101dBu typical with output @ 0
Distortion: 0.0035% to 15% @ 1kHz, mode and configuration dependent
I/O: +22dBm maximum input before hard clip. +28.5 dBm maximum output
Compressor Type: VCA in the David Blackmer style. Distressor like detector and envelope generator
Compressor Ratios: 2:1, 3:1, 4:1, 6:1, 8:1, 10:1, 12:1, 20:1
Detector High Pass: Select @ 70Hz
Attack Modification: Like performance to the Arousor plug-in
Chassis: 500 Series, single slot
Supply Voltage: 500 Series standard ±16v, 100mA
Empirical Labs Pump 500-Series Compressor Includes
Empirical Labs Pump 500-Series Compressor (Horizontal)
Manufacturer Warranty
