About this listing

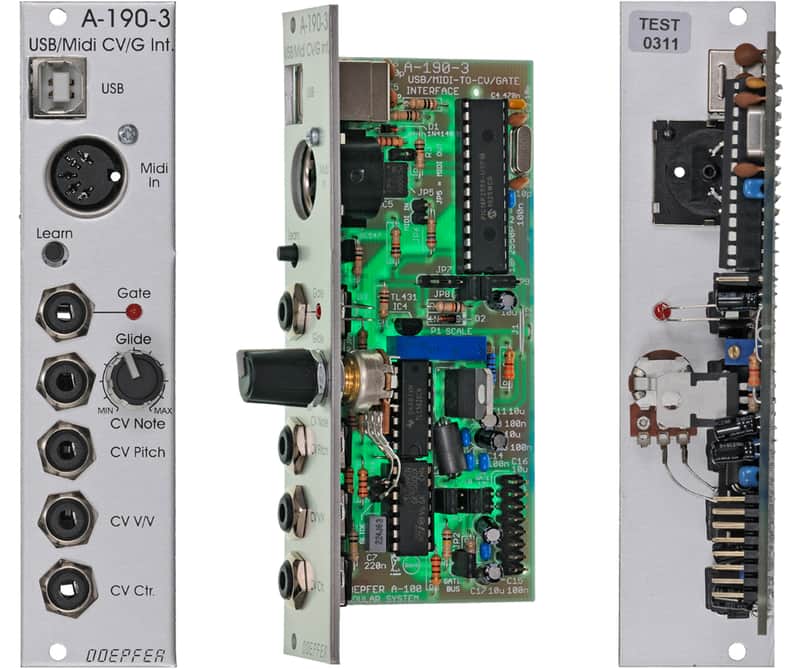

Module A-190-3 is a Midi/USB-to-CV/Gate interface that allows the integration of the A-100 system into a USB or Midi environment. It has available 4 analog control voltage outputs (CV1...4) and one Gate output. A-190-3 is the modular version of Dark Link.
In/Outputs and controls:
USB Input
Midi Input
Learn button
Gate Out (with LED for Gate display and learn function), 0/+5V
CV1: controlled by Midi note messages, 1V/Octave, 0...+5V
CV2: controlled by Midi pitch bend, ~ -2.5...+2.5V or ~ 0...+5V (can be selected by an internal jumper)
CV3: controlled by Midi velocity, 0...+5V
CV4: controlled by Midi control change messages, free assignale controller in learn mode
Glide control (portamento function for CV1)
Technical Specs.:
Width: 6HP
Depth: 55mm
Current: +12V: 60mA | -12V: 10mA
