SPL MixDream XP MK2 Model 2170 Analog Summing Device

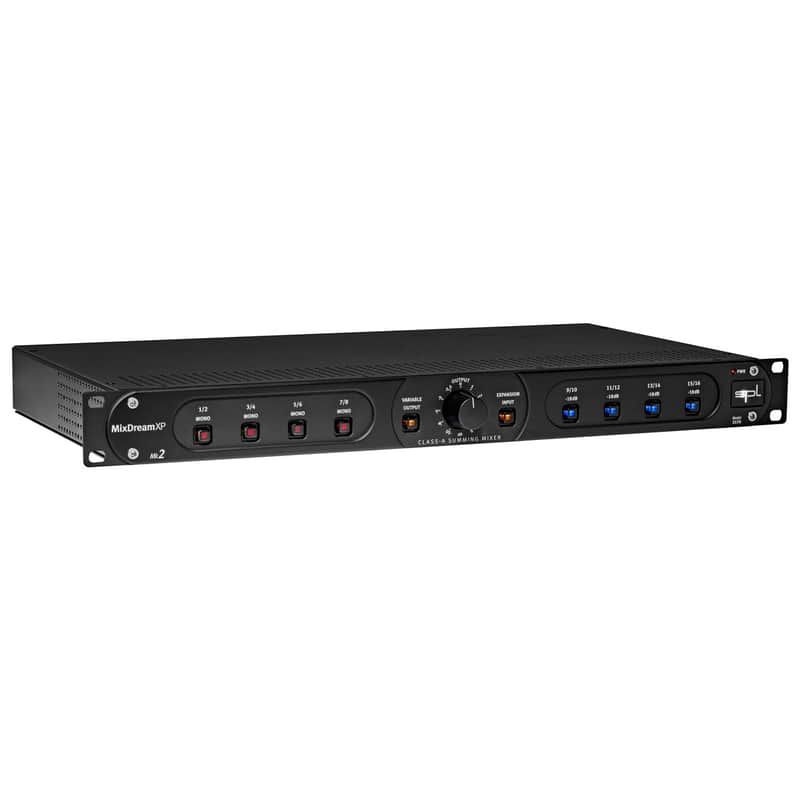

SPL MixDream XP Mk2 - Class A Summing Mixer
Step into the world of superior analog summing with the SPL MixDream XP Mk2. This 16-in-2 Class A summing mixer is not just a piece of equipment; it's the heart of your studio's sound. The Mk2 version retains the exceptional audio quality of its predecessor while offering new features like individually switchable -18 dB level attenuation for enhanced control.
Key Features:
Analog Summing Excellence: Experience the depth, precision, and spatiality that only analog summing can provide. MixDream XP Mk2 offers smooth transitions and unites tracks in a musically coherent mix.
Mono Switch: Essential for mono signals, the first four channel pairs can switch to mono, ensuring accurate center positioning for critical elements like kick, snare, and vocals.
-18 dB Level Attenuation: Gain finer control over the mix with the ability to attenuate the level of the last four channel pairs by 18 dB, bringing out more details in low-level signals.
Output Control: Adjust your output level from -10 dB to +5 dB for optimal integration with AD converters. Both main and monitor outputs are affected, ensuring consistency.
Variable Output: Choose between a fixed output level or adjustable output with the Variable Output switch.

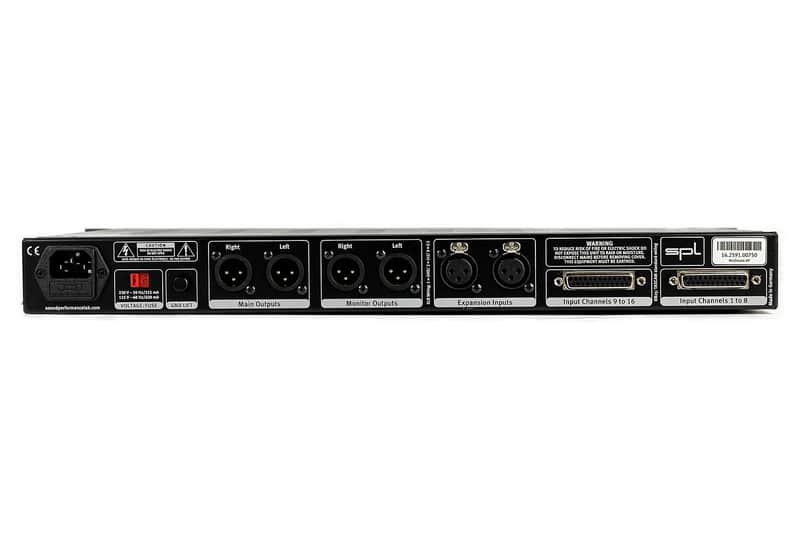

Multiple Inputs: Connect up to 16 channels using DB25 connectors, perfect for integrating with D/A converters from your DAW.
Main and Monitor Outputs: Route your stereo mix back into your DAW or to your monitoring setup, with balanced XLR connectors for high-quality sound transmission.
Expansion Capabilities: Need more channels? Easily connect another MixDream XP Mk2 or use the expansion input as an additional stereo input.
High-Quality Build: The MixDream XP Mk2 boasts a robust design with a 4 mm thick, black anodized aluminum front panel and high-quality steel housing, ensuring durability and reliability.
Puristic Approach: Focused on high-quality analog summing without unnecessary controls, MixDream XP Mk2 allows full retention of DAW automation for a seamless workflow.
Technical Specifications:
Analog Inputs/Outputs: XLR & DB25 (balanced)
Maximum Input/Output Gain: 28 dBu
Input Impedance: 10 kΩ
Output Impedance: 82 Ω
Frequency Range: 10 Hz – 200 kHz
THD + N: -95 dBu (A-weighted)
Noise Level: -97 dBu (A-weighted)
Dynamic Range: 125 dB
Internal Power Supply Voltage: +/- 30 V (analog audio), +12 V (relays/LEDs)
Mains Voltage: 230 V AC / 50 Hz, 115 V AC / 60 Hz
Power Consumption: Max. 30 VA
Dimensions: 482 x 44 x 237 mm
Unit Weight: 3.55 kg
The SPL MixDream XP Mk2 is a testament to the unmatched quality of analog sound. It seamlessly integrates into any digital production setup, providing a warm, rich, and coherent summing experience. Whether you're a professional engineer or a home studio enthusiast, the MixDream XP Mk2 is a must-have for achieving that elusive analog magic in your mixes.
Price$1,699
