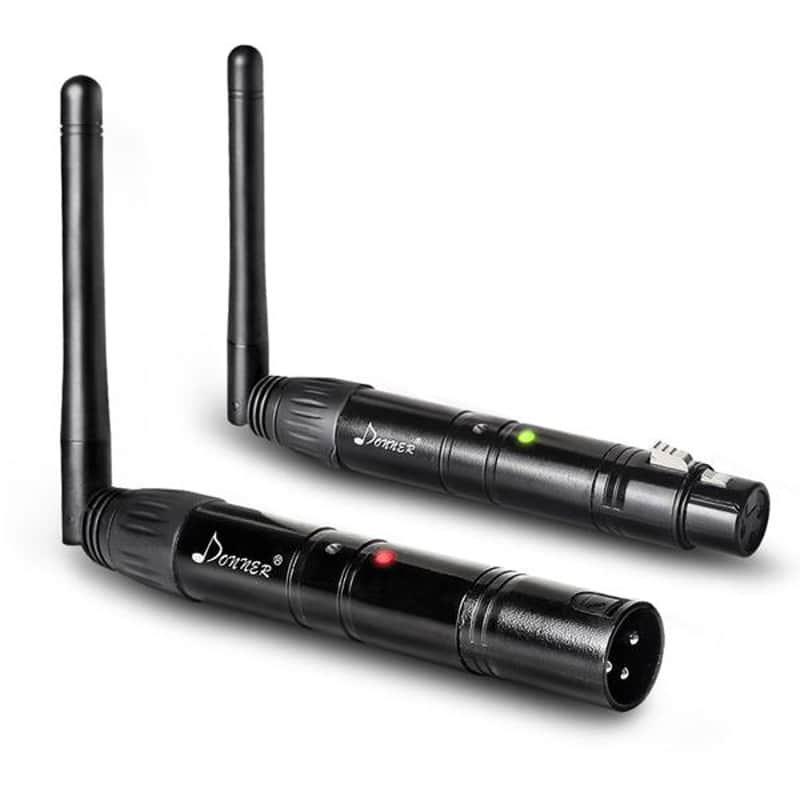

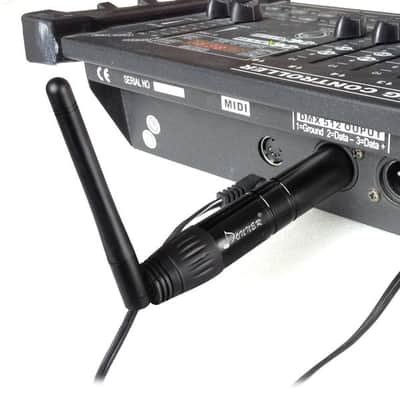

Black Wireless Transmitter & Receiver (1T+1R) Long Version

• 2.4G wireless DMX512 R/T
• 126 channels jumping frequency automatically,high anti-jamming ability,to ensure works reliability
• 7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
• Each other in the same place (Tricolor LED displaying Indicators)
• Input voltage: 5VDC 500mA MIN
• Communication distance: 400M (visible distance)
• Work frequency section: 2.4G ISM, 126 channels, frequency section
• Max transmitting power rate: 20dBm
• Receiver Sensitivity: -94dBm
• CPU: 32-bit ARM Core
• Modulation: GFSK
• DMX Signal Interface:RS485
• Operating temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

ID code and LED color corresponding relationship:

1：RED
2：GREEN
3：RED+GREEN
4：BLUE
5：RED+BLUE
6：GREEN+BLUE
7：RED+GREEN+BLUE

• Press momentary switch above the side led indicator to indicate ID setting
• Press again to set IC，to the color ID desired,adding 1 each time you press the switch will advance the color ID code.
• Working condition： LED constant lit up：No DMX or wireless signal.

                          Red LED flash：Transmitting Green LED flash：receiving

• RF frequency 2.400 - 2.525G，total 126 channels，it’s searching automatically,
• ID Code “1-7” groups ID code，press ‘KEY’ for setting，it only can work under same ID code of transmitter and receiver. (Same LED Color)
