About this listing

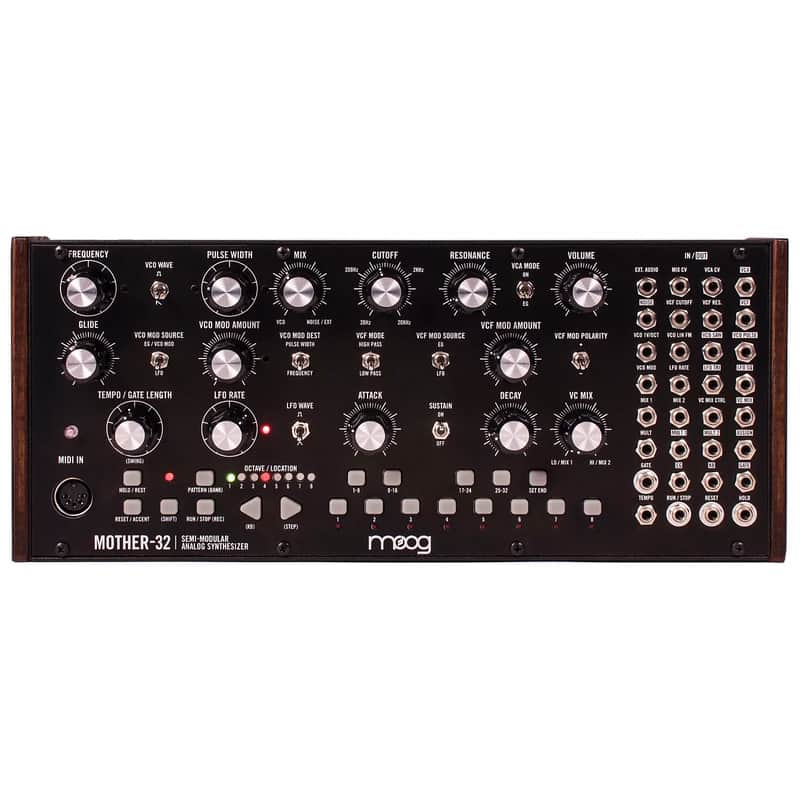

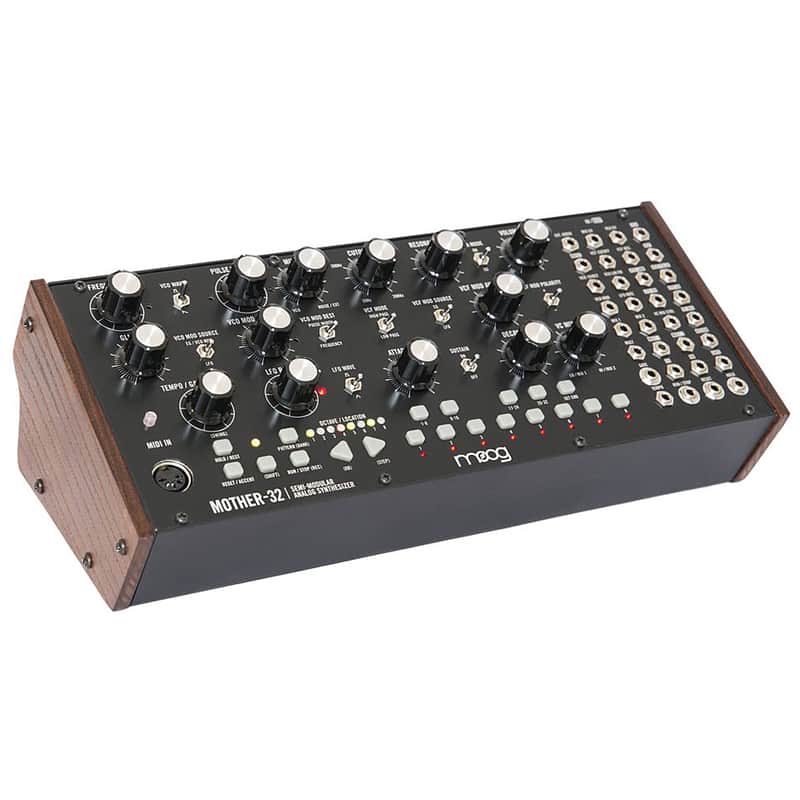

The Mother-32 from Moog is a semi-modular analog synthesizer with an integrated 32-step sequencer and 32-point patchbay with Eurorack compatibility. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI. The single oscillator is switchable between saw and square waveforms and offers pulse width modulation. The on-board LFO is capable of generating frequencies at audio levels and can be routed to the VCO, pulse width, filter cutoff. The classic 24 dB ladder filter is switchable between low-pass and high-pass with controls for cutoff and resonance. The envelope offers controls for attack and decay with sustain available via toggle switch. The on-board sequencer offers 32 steps and can be saved into 64 sequencer preset slots. Each step can record note, glide, gate length, accent, rest, and ratchet information, while the sequencer itself can clock to MIDI and offers a global swing. The on-board 13-note keyboard can record into the sequencer in real-time or be used to step-record data. Additionally, the keyboard can transpose a running sequence in real-time. The front panel of the Mother-32 can be removed from the chassis and placed within a standard Eurorack enclosure, making it fully compatible with a variety of Eurorack modules. The patch-bay offers 32 input and output points for signal routing including VCO waveform output, voltage control over resonance, LFO rate control, external audio input, keyboard CV tracking, and connections for controlling the sequencer. The Mother-32 ships with a power supply and 5 patch cables.
Features
32-step sequencer (real-time and step-record)
Sequence notes, gate length, accent, glide, and ratchet per step
Transpose sequence in real-time with keyboard
64 slots to save sequences (sequences- not patches)
5-pin Midi input
32x modular patchbay
White noise
2x Voltage control mixers
Definitive Moog oscillator w/ pulse and sawtooth wave output
Main Module can be transferred into any Eurorack skiff
Both Low Pass and high pass modules
Specifications
External Audio
Mix CV
VCA CV
VCF Cutoff
VCF Resonance
VCO 1V/Octave
VCO Linear FM
VCO Modulation
LFO Rate
Mix 1
Mix 2
VC Mix Control
Mult
Gate
Tempo
Run/Stop
Reset
Hold
VCA
Noise
VCF
VCO Saw
VCO Pulse
LFO Triangle
LFO Square
VC Mix
Mult 1
Mult 2
Assign
Accent (Default)
Sequencer Clock
Sequencer Clock / 2
Sequencer Clock / 4
Sequencer Step ramp
Sequencer Step saw
Sequencer Step triangle
Sequencer Step random
Sequencer Step 1 trigger output
MIDI velocity
MIDI pitch bend
MIDI channel pressure
MIDI CC 1
MIDI CC 2
MIDI CC 4
MIDI CC 7
Sound Engine: 100% Analog
Keys: Momentary Pads: 13
Polyphony: Monophonic
Patchbay: 32x 1/8" / 3.5 mm jacks

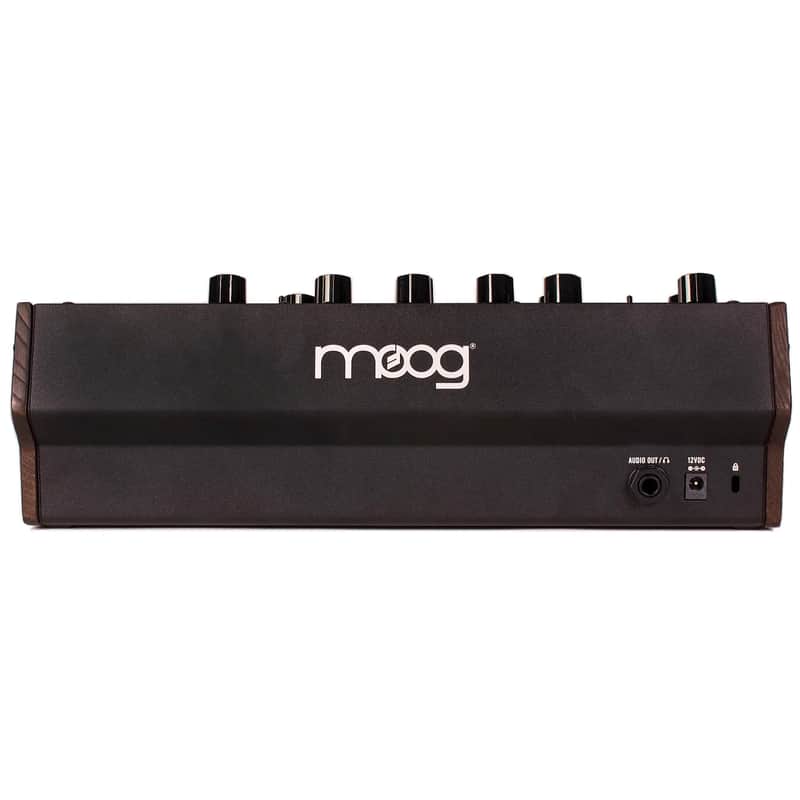

Rear Panel I/O: Audio Output: 1/4" / 6.35 mm
Power: Power Supply: 100-250 VAC, 50/60 Hz, +12 VDC 1 A Power Consumption: 2.8 W Eurorack Current Draw: +12 VDC, 230 mA (10-pin header)
Dimensions: Desktop Case: 12.6 x 4.2 x 5.2" / 31.9 x 10.7 x 13.3 cm Eurorack Mounting: 60 HP Module Depth: 0.7" / 17.5 mm
Weight: 3.5 lb / 1.6 kg
Package Weight: 5.005 lb
Box Dimensions (Lxwxh): 14.15 x 8.4 x 6.4"
PriceC$899
