BRICASTI DESIGN M11 - R2R DIGITAL TO ANALOG CONVERTER

The Bricasti Design
The M11 R2R is the concentration of the Ladder D/A technology found in the flagship Bricasti Design M21. The M11 features the fit, finish and sonic qualities of our classic analog design, classic chassis and MDx processor.

Elegant and refined
The M11 utilizes resistor ladder D/A technology coupled with the latest proprietary MDx digital platform, clocking algorithms and filter technology for exceptional performance without the use of SRC's so signals stay native and true. The digital section is coupled with a pristine analog path with the goal to deliver the truest possibly representation of tonality, precision and dimension.

Superb Analog

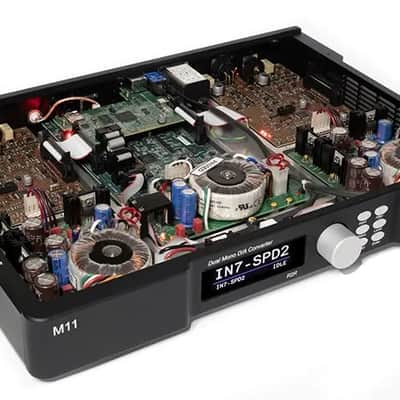

A high-performance linear power architecture allows for a clean signal with extremely low noise and expansive headroom. Featuring Point-to-point wiring and stillpoint isolation integrated directly into the chassis, you will experience new depth, detail and dimensionality in your music. Improved spacial cues and separation create a truly immersive experience.

Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.

Masterfully connected
The M11 digital input selection is well appointed to fit most any system. It also features a fully differential design which creates a less resistant output signal path, ideal when matched with fully differential M20 preamplifier and the Bricasti M28 and M25 amplifiers.

Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.

SPECIFICATIONS

Digital Inputs
XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
Sample Rates AES, SPDIF, AUX in 44.1 kHz, to, 192khz
Sample Rates USB 44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native or DoP
Sample Rates Ethernet (optional) 44.1 kHz to 384kHz PCM, 64x 128x Native and DoP
Jitter 8 psec @ 48k / 6psec @ 96k
Balanced Analog Outputs XLR balanced (pin 2 hot)
Impedance 40 ohm
Output Adjustable +8 dbm to +22 dbm, or fixed at +13.5 dbm
D/A Conversion 20 bit Ladder type
Frequency Response @44.1k 10 hz- 20 kHz +0dB, -.2 dB
Dynamic Range >120dB A-Weighted
THD+N @ 1k THD+N @ 1k: .0020% @ 0dbfs<
Unbalanced Analog Outputs RCA
Impedance 40 ohm
Output level +8 dbm (2V RMS)
D/A Conversion 20 bit Ladder type
Frequency Response @ 44.1k 10 hz- 20 kHz -.2 dB
Dynamic Range >120dB A-Weighted
THD+N @ 1k .0020% @ 0dbfs
General Specifications
EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
RoHS Complies with: EU RoHS Directive 2002/95/EC
Safety Certified to: IEC 60065, EN 55103-2
Operating Temperature 32 F to 105 F (0 C to 40 C)
Storage Temperature: -22 f to 167 F (-30 C to 70 C)
Finish Anodized aluminum, nickel plating with brass knobs and buttons.
Dimensions 17” x 12“ x 2”
Weight 15 lbs
Shipping Weight 18 lbs
Shipping Dimensions 22”x 17”x 7”
Mains Voltage -100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
Trigger out TRS mini jack, Tip ground, Sleeve 5V
Power consumption: 28 Watts (6W standby)
