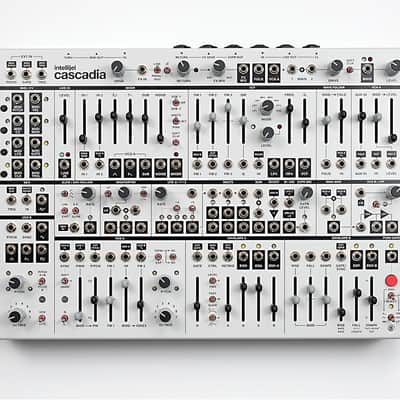

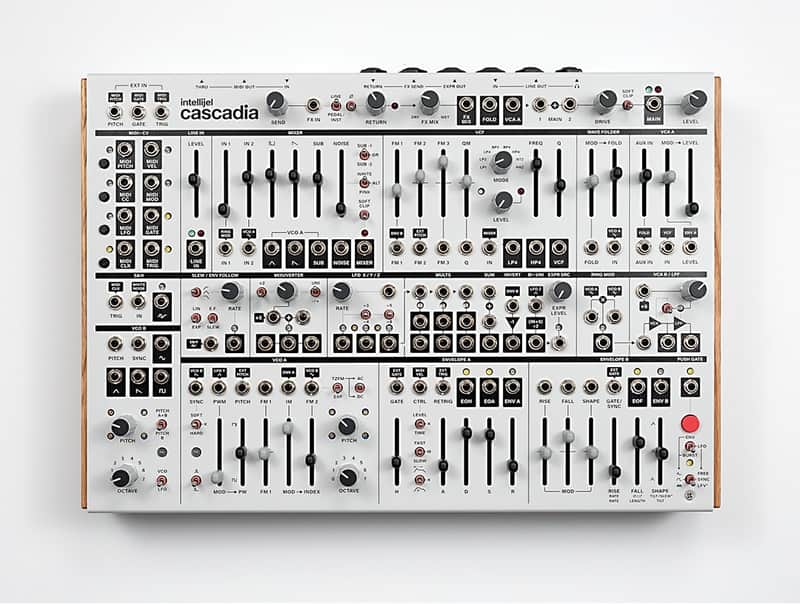

Semi-Modular Desktop Synthesizer

• 2 analog oscillators
• Each with controls for coarse and fine tuning
• Sync input and 4 waveforms - sine, triangle, sawtooth and square
• VCO A with selectable Through-Zero FM, modulation index VCA and sub-oscillator
• VCO B with switchable LFO mode and selectable pitch CV source
• Noise generator: white noise, pink noise and digital noise with 4 variations
• 6-channel mixer with switchable soft-clipping and normalised to VCO A outputs and ringmodulator
• Line input with gain control for external signals
• Multimode filter with 4 CV inputs and 8 selectable filter modes: 6 dB / 12 dB / 24 dB lowpass, 12 dB / 24 dB bandpass, 24 dB highpass, notch and phaser
• Wavefolder
• VCA A with 2 inputs - normalised to Wavefolder and VCF
• VCA B with selectable Lowpass Gate mode
• Ringmodulator
• Sample & Hold stage
• ADSR envelope generator with 3 selectable time-ranges, hold stage and retrigger input
• Function generator with manual gate button, adjustable response curve and 3 selectable modes (envelope, LFO, burst generator)
• 3-channel triangle LFO
• Slew limiter and envelope follower
• Mixuverter section for mixing, attenuating and inverting signals
• Utility section with multiple, summer, inverter and unipolar/bipolar converter
• Programmable MIDI-CV interface with 8 outputs
• Pitch,gate and trigger inputs for external control sources
• Effects insert with controls for send, return and mix
• Main output with drive-control and switchable soft-clipping
• Line output: 6.3 mm jack, balanced
• Line input: 6.3 mm jack, balanced
• Headphones output: 6.3 mm jack
• Expression output: 6.3 mm jack
• Effects send and return: 6.3mm jack
• MIDI in / out / thru: 5-pin DIN
• USB-C port for USB-MIDI
• Dimensions (WxDxH): 348 x 246 x 66 mm
• Weight: 1.94 kg
• Includes 14 patch cables, USB cable and external power supply
