About this listing

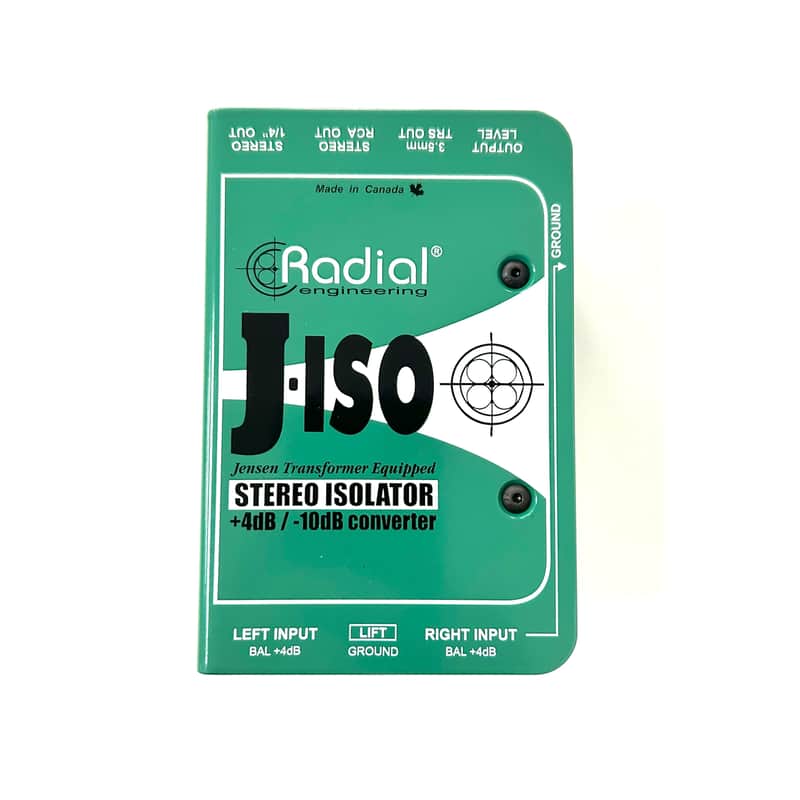

**This is an open-box item in excelent condition. It does not come with the original box**The Radial J-Iso is a pro to consumer signal converter. It is designed to take a +4dB balanced line level and bring this down to a -10dB unbalanced format for easy manipulation with computers, hand held recorders and other unbalanced systems. Set and forget controls allow the system tech to set levels for optimal signal transfer. The J-Iso and Pro-Iso differ with respect to the transformer and audio signal path. The J-iso is designed to deliver full bandwidth audio while the Pro-Iso is band limited for the voice range.FeaturesXLR Inputs - +4dB balanced inputs follow AES standards for easy interface with professional gearGround Lift - disconnects ground at the XLR pin-3. Helps eliminate hum and buzz caused by ground loopsSpecificationsAudio circuit type: Passive, transformer basedTransformer: Jensen JT-11-YMPCNumber of channels: Stereo (dual mono)Frequency response: 20Hz - 20KHz (+0dB/ -1.5dB)Dynamic range: 130dBTotal harmonic distortion: 0.001% @ 1kHzPhase Deviation: 0.5° @ 100Hz; 1° @ 20HzInput Impedance: 1.3k Ohms, balancedOutput Impedance: 200 Ohms, unbalanced (when output control is set to max)Common Mode Rejection Ratio: -58dBMaximum Input: +20dBu @ 1kHz/1% THD+N
PriceC$229.99
