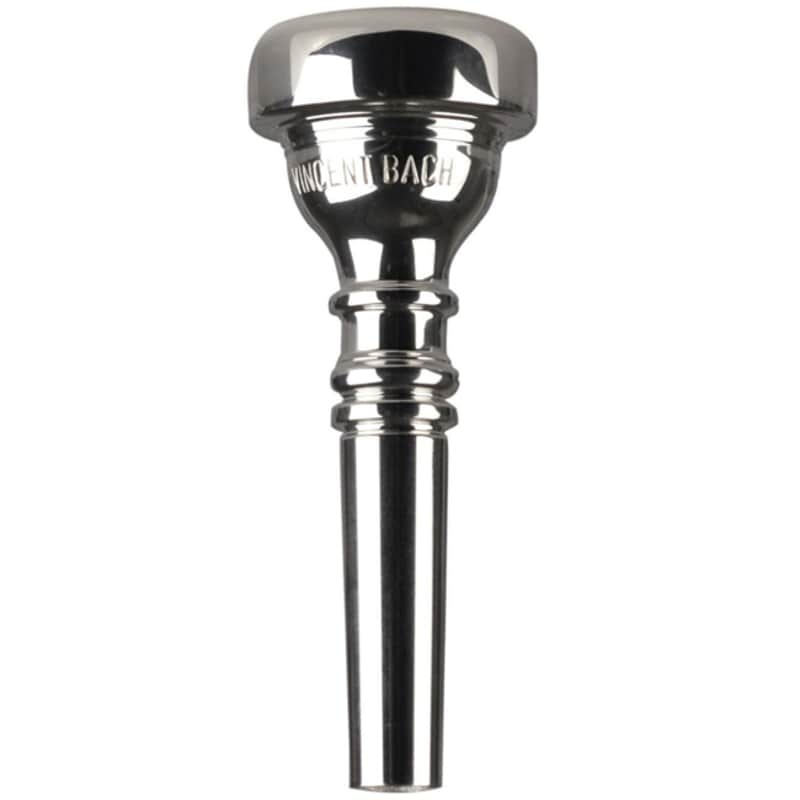

Bach mouthpieces have been designed in an orderly progression from the largest to the smallest diameters, and from the deepest to the most shallow cup, all with a choice of rim designs. Rim shape is described for each individual model. Model numbers progress numerically from model no. 1 with the largest cup diameter, to model no. 20C with the smallest cup diameter. Cup depths are notated with letters. "A" cups are the deepest; standard cups have no letter designation; progressively shallower cups are marked "B" through "F".
Empty Space
Model
Approx Cup Dia.
Rim Shape
1
17.5 mm
Medium thin
1X
17 mm
Medium wide
1B
17 mm
Medium wide
1C
17 mm
Medium wide
1D
17 mm
Medium wide
1E
17 mm
Medium wide
1 1/4C
17 mm
Medium wide
1 1/2B
17 mm
Medium wide, not too sharp
1 1/2C
17 mm
Medium wide, not too sharp
2
16.5 mm
Medium wide, lowered toward the outside
2C
16.5 mm
Medium wide, lowered toward the outside
2 1/2C
16.4 mm
Medium wide, lowered toward the outside
3
16.3 mm
Medium wide
3B
16.3 mm
Medium wide
3C
16.3 mm
Medium wide
3CW
16.3 mm
Slightly wider, lowered to outside
3D
16.3 mm
Medium wide
3E
16.3 mm
Medium wide
3F
16.3 mm
Medium wide
5A
16.25 mm
Medium wide, rounded inside edge
5B
16.25 mm
Medium wide, lowered toward the outside. Medium sharp edge
5C
16.25 mm
Medium wide, well rounded toward the inside and outside, fairly flat
5MV
16.25 mm
Medium wide, lowered toward the outside. Medium sharp edge
5SV
16.25 mm
Medium wide, lowered toward the outside. Medium sharp edge
5V
16.25 mm
Medium wide, lowered toward the outside. Medium sharp edge
6
16.2 mm
Medium wide, not too sharp
6B
16.2 mm
Medium wide, not too sharp
6C
16.2 mm
Medium wide, not too sharp, rather flat
7
16.2 mm
Medium wide, lowered toward the outside. Medium sharp inside edge
7A
16.2 mm
Medium wide, lowered toward the outside. Medium sharp inside edge
7B
16.2 mm
Medium wide, lowered toward the outside. Medium sharp inside edge
7BW
16.2 mm
Medium wide, lowered toward the outside. Medium sharp inside edge
7C
16.2 mm
Medium sharp inside. Well-rounded edge with a perfect grip.
7CW
16.2 mm
Slightly wider, gradually lowered toward the outside
7D
16.2 mm
Medium wide, lowered toward the outside.
7DW
16.2 mm
Slightly wider
7E
16.2 mm
Medium wide
7EW
16.2 mm
Slightly wider
8
16.2 mm
Fairly wide with slightly flatter surface than No. 7. Rounded inner edge
8B
16.2 mm
Fairly wide with slightly flatter surface than No. 7B. Rounded inner edge
8 1/2A
16.1 mm
Medium wide with rounded inner edge
8 1/2B
16.1 mm
Medium wide, lowered toward the outside. Med. sharp inside edge
8 1/2C
16.1 mm
Medium wide
8 3/4
16.1 mm
Medium wide, not too sharp
8 3/4C
16.1 mm
Medium wide, slightly flat
9
16.05 mm
Medium wide, lowered toward the outside
9A
16.05 mm
Medium wide, well rounded
9B
16.05 mm
Medium wide, lowered toward the outside
9D
16.05 mm
Medium wide, lowered toward the outside
10
16 mm
Fairly wide with rather broad, flat surface
10B
16 mm
Fairly wide with rather broad, flat surface
10C
16 mm
Fairly wide with rather broad, flat surface
10 1/2A
15.9 mm
Medium wide, well rounded
10 1/2C
15.9 mm
Medium wide
10 1/2D
15.9 mm
Medium wide, high toward the inner edge
10 1/2E
15.9 mm
Medium wide, high toward the inner edge
10 1/2EW
15.9 mm
Extra wide, high toward the inner edge
10 3/4A
15.75 mm
Medium wide, well rounded
10 3/4EW
15.75 mm
Extra wide
11B
15.7 mm
Medium wide, well rounded
11DW
15.7 mm
Extra wide
11 1/2A
15.65 mm
Medium wide, well rounded
11 3/4CW
15.6 mm
Fairly wide, rather flat, not too sharp
12B
15.2 mm
Broad, rather flat.
12C
15.2 mm
Broad, rather flat.
17
15.1 mm
Medium wide.
17C
15.1 mm
Medium wide.
18C
15.1 mm
Broad, rather flat.
Price$65
