Santa Fe Springs, CA, United States
About this listing

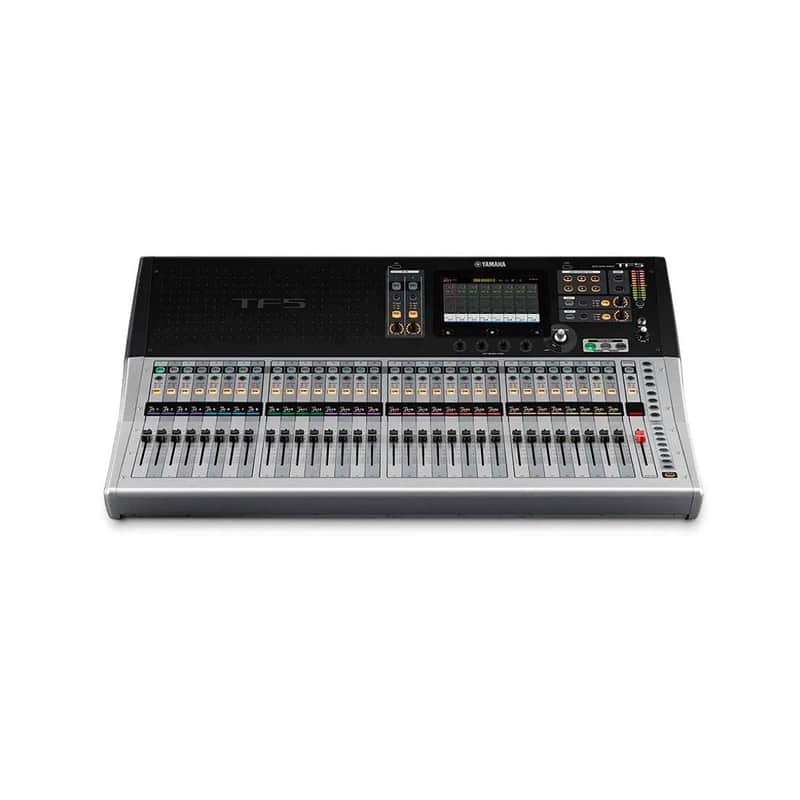

Digital Mixing Console High input capacity and fader count makes this powerful console ideal for larger applications. Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide. Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications. Key Features 33 motor faders (32 channels + 1 master) 48 input mixing channels (40 mono + 2 stereo + 2 return) 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses 8 DCA groups with Roll-out 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs 16 analog XLR outputs 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device 1 expansion slot for NY64-D audio interface card Technical Specifications Fader Configuration 32 + 1 (Master) Input Channel Functions 8 DCA Groups [Mixing Capacity] Input Channels 48 (40 mono + 2 stereo + 2 return) 20 (8 mono + 6 stereo) Stereo Buses 1 Sub Buses 1 [I/O] Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pina) Outputs 16 (XLR) Expansion Slots 1 On Board Processors, DSP 8 Effects + 10 GEQ USB 34x34 USB Audio Interface, 2 track recording via USB Storage Device [General Specifications] Sampling Frequency Rate; Internal 48 kHz Signal Delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Fader 100 mm motorized, Resolution = 10-bit, +10 dB to -138 dB, infinite dB all faders Total Harmonic Distortion Less than 0.05% 20 Hz-20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a -18 dB/octave filter@80 kHz) Frequency Response +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT Dynamic Range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min Hum & Noise Level Equivalent input noise: -128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) Residual output noise: -85 dBu, ST master off (Measured with an A-Weight filter) Crosstalk -100 dB (Measured with a -30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min Power Requirements 100-240 V 50/60 Hz Power Consumption 120 W Dimensions 34.1 x 8.9 x 23.6 inches Net Weight 44.1 lb Accessories Quick Guide, Power Cord, CUBASE AI download information Others Operating temperature range: 0-40 deg C Storage temperature range: -20-60 deg C
Price$3,599.99
Free Shipping
Free Shipping
from Santa Fe Springs, CA
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
