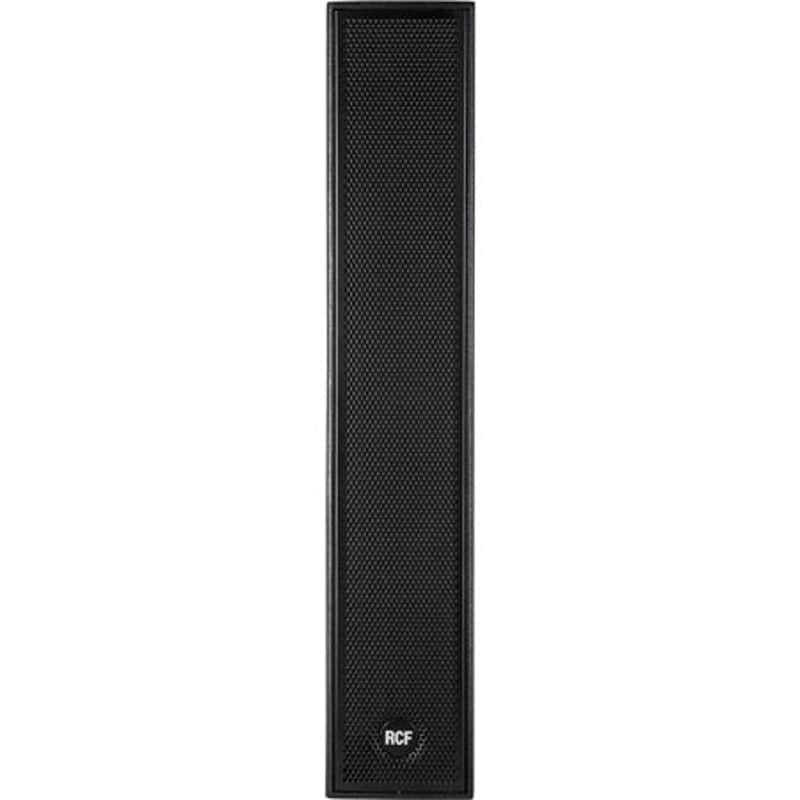

The RCF NXL 24-A is an active column speaker array system with four 6" high power woofers and a 2.5" voice coil compression driver loaded on a 100° x 30° constant directivity waveguide. The amplifier delivers 1,400 Watts and is controlled by a DSP handling crossover, equalization, phase alignment, soft limiting, and speaker protections. Equalization can be applied to a single unit or a pair of speakers.
Features
1,400 Watt Class D bi-amplification
131 dB SPL Max
65 Hz - 20 kHz frequency response
4 x 6" Woofers
2.5" voice coil RCF Precision C. Driver on a waveguide
100° x 30° slightly tilted pattern control
DSP controlled input section with single or dual EQ preset
East-to-fly and install with built-in rigging points and pole mount socket
Specifications
Acoustical Specifications
Frequency Response: 65 Hz - 20000 Hz
Max SPL @ 1M: 131 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 30°
Transducers
Compression Driver: 1.4'', 2.5'' v.c
Woofer: 4 x 6.0'', 1.5'' v.c
Input/Output Section
Input Signal: bal/unbal
Input Connectors: XRL, Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Processor Section
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ Shape, MIc/Line
Power Section
Total Power: 1400 W Peak, 700 W RMS
Low Frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard Compliance
CE Marking: Yes
Physical
Cabinet/Case Material: Baltic birch plywood
Hardware: 4 x MB, 4 x quick lock
Handles: 2 side
Pole Mount/Cap: Yes
Grille: Steel
Color: Black
Size
Height: 41.57 inches
Width: 7.91 inches
Depth: 10.79 inches
Weight: 58.2 lbs
Shipping
Package Height: 12.44 inches
Package Width: 45.47 inches
Package Depth: 8.74 inches
Package Weight: 63.93 lbs
PriceC$4,619
