About this listing
Cartridge & Stylus
Frequency Response
20-25,000 Hz
Channel Separation
23 (dB at 1 kHz)
Vertical Tracking Angle
23°
Vertical Tracking Force
1.8-2.2 g (2.0 g standard)
Stylus Construction
Nude square shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
3.3 k ohms (1 kHz)
DC Resistance
485 ohms
Coil Inductance
550 mH (1 kHz)
Output Voltage
3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance
1.5 dB (1 kHz)
Stylus Shape
2.2 x 0.12 mil Microlinear
Cantilever
Aluminum pipe
Static Compliance
20 x 10 – 6 cm / dyne
Dynamic Compliance
10 x 10 – 6 cm / dyne (100 Hz)
Mounting
Half-inch
Cartridge Weight
6.1g
Dimensions
17.2 mm (0.68') H × 18.9 mm (0.74') W × 28.3 mm (1.20') D
Accessories Included
Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
Model

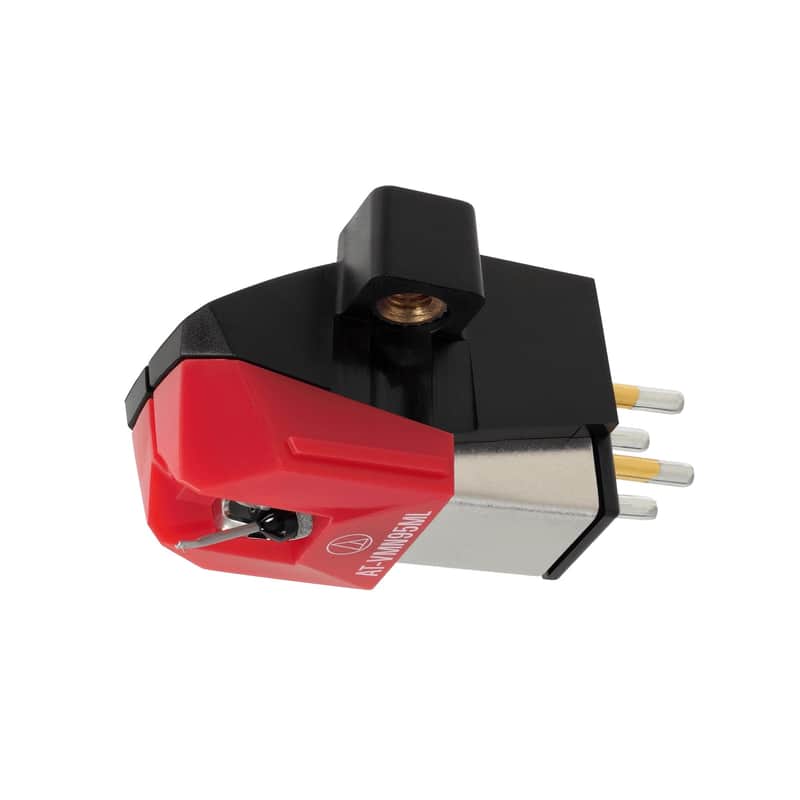

AT-VM95ML
Mounting Feature
Half-inch mount
Recommended Load Capacitance
100 to 200 pF
Replacement Stylus
AT-VMN95ML
Stylus Size
2.2 x 0.12 mil
Type
VM Stereo Dual Magnet
Weight
6.1 g (0.22 oz)
Wire Used for Coil
T.P. Copper
PriceC$249.99
+ C$20 Shipping
Only 1 left
Grab it before it's gone
