About this listing
Seriously potent polyphonic voice built around 16 sine-based oscillators. Capable of a huge range of tones thanks to FM, phase distortion and wavefolding. Another cracker from a consistently reliable brand.
Supplier's notes:

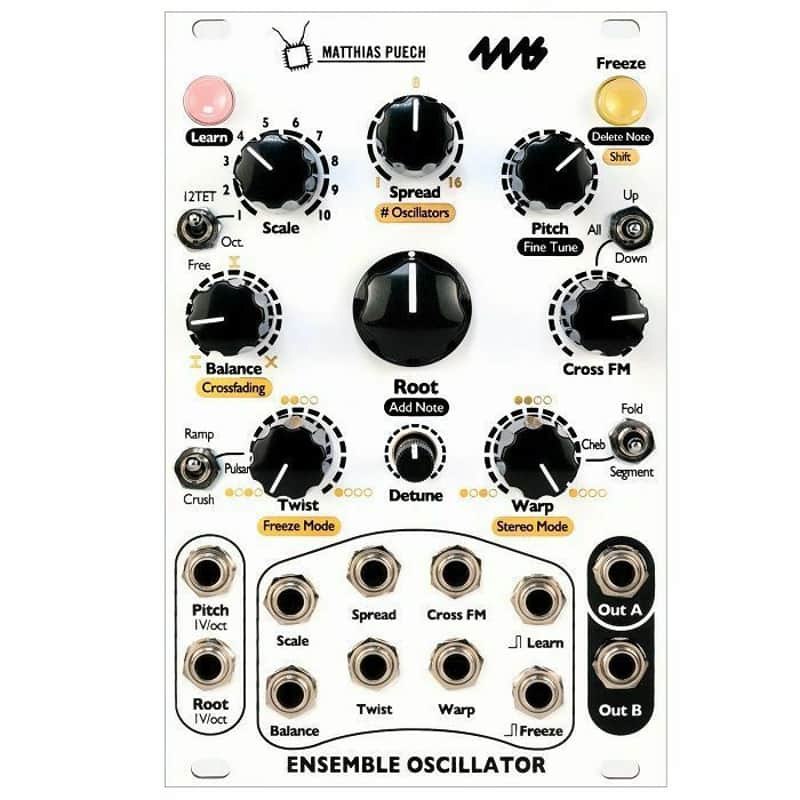

The Ensemble Oscillator is a unified polyphonic voice of sixteen complex oscillators combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways. By quantizing the oscillators to scales or series of harmonics, the Ensemble Oscillator allows you to explore the sonic boundary between musical chords and rich evolving textures. Easily create a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be "learned" and saved using a CV keyboard or by manually entering notes with the controls.
The Ensemble Oscillator is designed by Matthias Puech and 4ms Company.
30 factory-programmed, user-writeable scales organized in three groups:
12TET: all notes quantized to equal temperament, repeating over octaves
Octave: unquantized notes, repeating over octaves
Free: unquantized notes, repeating over the interval between the lowest and highest note
16HP Eurorack format module
0.98" (25mm) maximum depth (including power cable)
10-pin to 16-pin Eurorack power header
Power consumption
+12V: 114mA maximum
-12V: 45mA maximum
+5V: 0mA (not used)
Audio outputs
Frequency range: 0Hz (DC) - 20kHz
Typical amplitude: 10Vpp
Maximum amplitude: 18.5Vpp
1V/oct inputs (Root and Pitch)
Voltage range: -2V to +6V (8 octave range)
Factory calibrated to 1.00V/oct
Per-jack user-calibration allows from 0.7V/oct to 1.3V/oct
CV inputs (other than 1V/oct)
Voltage range: -5V to +5V
Gate inputs
Trigger threshold: 2.5V
User memory (non-volatile)
Scale slots: 30
Shift feature settings
1V/oct calibration settings
Price£281.75
+ £5.71 Shipping
14-Day Return Policy
Enjoy peace of mind with your new gear
