Offering full-range stereo sound and battery-powered operation, the three-channel KC-220 is the ultimate mobile keyboard amp. It also excels as a mini PA, thanks to its built-in DSP effects, dedicated auxiliary input, and support for an XLR vocal mic. Delivering big sound in a super-portable package, the KC-220 is a must-have amp for rehearsals, street performances, and gigging on the go.

With a KC amp by your side, you're in complete control of your stage rig, so you'll always sound great and play your best. And that's worth it every time.

Features

• Battery-powered stereo keyboard amplifier
• Highly efficient power section with 30 watts of power (15 watts x 2)
• Two newly developed custom 6.5-inch woofers and two custom tweeters
• Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
• Built-in DSP effects: reverb and two chorus types
• XLR mic input, mono/stereo line output, and headphones output
• Metal jacks for increased durability
• Runs on eight AA batteries or included AC adapter; removable cartridge for easy battery replacement
• Built-in tilt-back stand and integrated mount for optional ST-A95 speaker stand

Specs

Rated Power Output:
30 W (15 W + 15 W) (when using the AC adaptor)
20 W (10 W + 10 W) (when using the Alkaline batteries)

Nominal Input Level (1 kHz):
CH1 (BALANCED, MIC/LINE): -50- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
AUX IN (L, R, STEREO): -10 dBu

Nominal Output Level (1 kHz)
LINE OUT: +4 dBu

Speakers: 16 cm (6.5 inches) Woofer x 2; Tweeter x 2

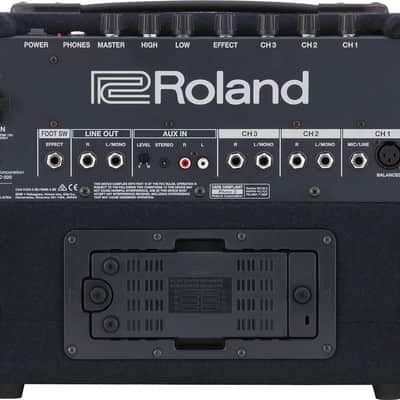

Connectors
CH1 (BALANCED) jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (L/MONO, R) jack: 1/4-inch phone type
CH3 (L/MONO, R) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jack: Stereo miniature phone type

LINE OUT (L/MONO, R) jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
FOOT SW jack: 1/4-inch phone type

DC IN jack

Current Draw: 550 mA

Expected battery life under continuous use
- Alkaline battery: Approximately 7 hours
- Rechargeable Ni-MH battery: Approximately 8 hours

Accessories: Owner's Manual, AC Adaptor, AC Cord

Size and Weight:
Dimensions (W x D x H): 420 x 244 x 320mm (16-9/16 x
9-5/8 x 12-5/8 inches)
Weight: 7.3 kg (16 lbs 2 oz)
