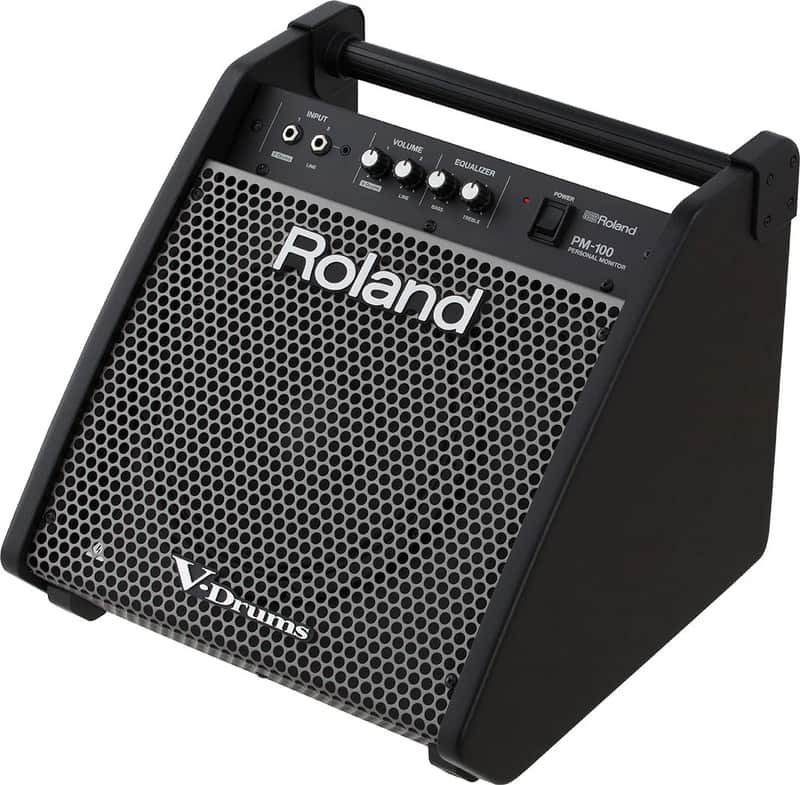

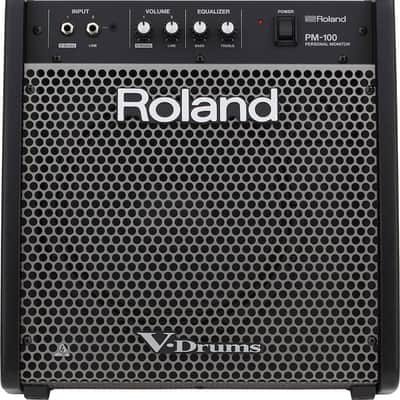

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland's V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimised for reproducing the famously expressive V-Drums sound and response.

With onboard mixing capabilities, you're able to connect music players and other devices for practice and enjoyment while playing at home.

Features
• Premium all-in-one monitor designed for use with V-Drums electronic percussion products
• Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter
• Angled design provides ideal sound coverage for the seated player
• Integrated mixer with independent volume controls and global EQ
• Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
• Unique full-width bar handle for easy floor adjustment and carrying convenience

Specifications
Rated Power Output
- 80 W

Nominal Input Level
- V-Drums Input: -6 dBu (10 k ohms)
- Line Input: -6 dBu (10 k ohms)

Speakers
- 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1

Controls
- Power switch
- V-Drums volume knob
- Line input volume knob
- Bass knob
- Treble knob

Indicators
- Power

Connectors
- V-Drums input jack: Stereo 1/4" phone type
- Line input jack: Stereo 1/4" phone type, Stereo miniature phone type
- AC in jack

Power Consumption
- 36 W

Accessories
- Owner's Manual
- Power Cord

Dimensions
388 x 407 x 354 mm (15-5/16 x 16-1/16 x 13-15/16")

Weight
- 13.5 kg (29 lbs 13 oz)
