THE NEW JACK RABBIT BLACK EDITION TREMOLO

Jack Rabbit is a high quality analog pedal, that delivers a wide variety of tremolo effects – from warm wobble to whacked out. It features simple control over tempo by incorporating both tap, and strum tempo modes. It’s modulation rate spans from 1Hz to 20Hz and utilizes a tempo subdivision switch. The 1/8” stereo TRS input jack called FX LINK allows the pedal to be controlled by an external switch box or effects switching system with TRS control output jacks, such as the BOSS® ES-8 or ES-5.

CONTROLS

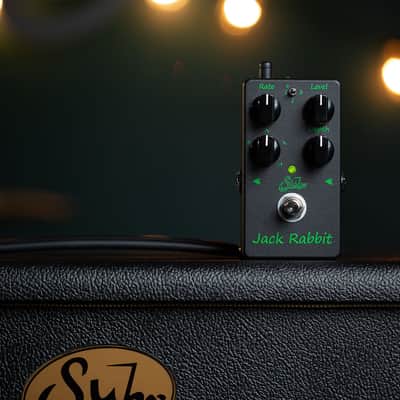

Jack Rabbit features a flexible and easy to tweak layout. Rate: Controls the speed of the tremolo effect, from 1Hz to 20Hz. Level: Controls the output level of the pedal, from +0dB to +14dB. Depth: Controls the depth of the tremolo effect. Waveform: Selects the modulation waveform which includes Sine, Square, Triangle, Reverse Ramp, and Ramp.

TEMPO CONTROLS

TEMPO SUBDIVISION SWITCH: Jack Rabbit features quarter note, eighth note, and quarter note triplet subdivisions. TAP TEMPO: In addition to using the Rate control, the tempo can be set by using the built in tap tempo and strum tempo modes. Tap tempo is accessed by pressing and holding Jack Rabbit’s footswitch for approximately one second (please see the manual for details).

ADVANCED FEATURES

True Bypass: Jack Rabbit is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off. FX Link: The FX Link connector allows the pedal’s switching and tap tempo function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state. Low Battery Monitor: A unique battery monitor circuit alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

SPECIFICATIONS Street Price: $249 SKU: 03-JAC-0002 Input Impedance: 1M Ohm Output Impedance: 600 Ohm Power Connector: 9Vdc regulated, center negative, 2.1mm x 5.5mm Operating Voltage: 5V to 18V (nominal 9V) Maximum Voltage: 20Vdc Reverse Battery Protection: Yes Over Voltage Protection: Yes Current Consumption: < 20mA Estimated Battery Life: 25-50 hours of continuous use FX Link Connector: 1/8" Stereo FX Link Max Voltage: 3.3Vdc Shield → Tip: Activate On/Off Shield → Ring: Activate Tap Tempo ROHS Compliant: Yes Dimensions: 2.5”(W) x 4.5”(D) x 1.25”(H) Weight: 0.75lb
USER GUIDE
