Brand New w/ Warranty. We are an authorized Phil Jones Bass dealer.

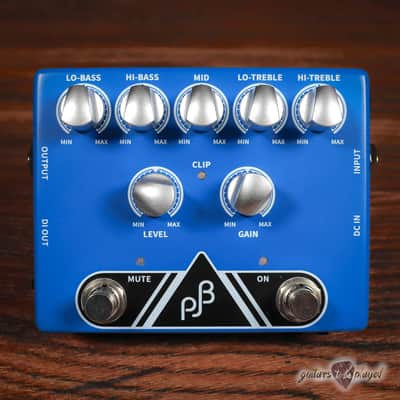

One pedal to throw in front of any rig. The PE-5 serves as a preamp, a direct box and a signal booster. In addition to a mute switch, you have an engage switch that allows you to bypass or activate your EQ and gain controls, perfect if your “dry” signal is your baseline and you want a particular EQ or boost for a secondary tone. This method works especially well into the front of an amp. Or, use the pedal as an always-on direct box to tailor your tone before sending your signal directly to your sound engineer or recording interface.

What we think:

• Extremely powerful 5-band EQ
  • Lo-Bass EQ band lets you dial in the sub bass and contours a low B string perfectly
  • Hi-Bass is situated nicely to control any unwanted low frequency buildup in the room
  • Lo- and Hi- Trebles put extra growl or pick attack right at your fingertips
• Piezo/Magnetic switch changes the impedance at the input to match different instruments
• ¼” output and pre/post-switchable XLR output provides plenty of flexibility
• Rechargeable lithium-ion battery means you can leave your power supply at home

We also stock a variety of Phil Jones heads and speaker cabinets. Contact us for bundle pricing!

Specifications

Model: PE-5 Pedal

Input:

• ¼” Phone
• Impedance Piezo (“PZ”) = 4.7MΩ
• Impedance Magnetic (“MG”) = 2MΩ
• Maximum input before clipping – 4 Volts (peak to peak)

Gain Range: From -6 dB to +6 dB

EQ

• LO -BASS: Level ±12 dB (Freq. 50Hz)
• HI-BASS: Level ±15 dB (Freq. 160 Hz)
• MID: Level ±15 dB (Freq. 630KHz)
• LO-TREBLE: Level ±15 dB (Freq. 2.5 KHz)
• HI-TREBLE: Level ±15 dB (Freq. 12 KHz)

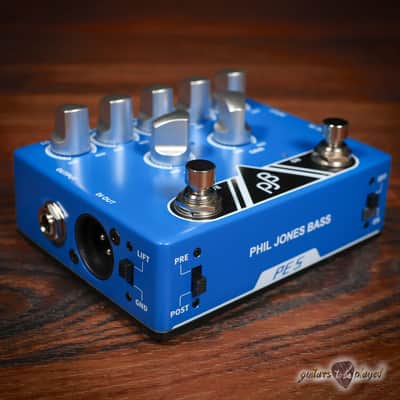

Outputs:

• UNBALANCED 1/4” JACK
• BALANCED DI OUT with transformer (GND switch)

Controls: GAIN / LEVEL

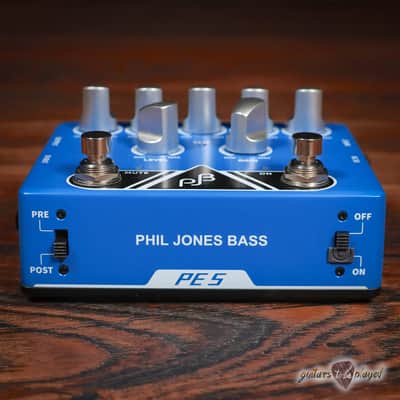

Switches: Bypass | MUTE | ON/OFF | PRE/POST

Power Requirement: 9VDC - 1A from separate 9volt 1 amp (minimum) adaptor

Dimension (W x D x H): 120 x 95 x 37 mm

Weight: 450 grams
