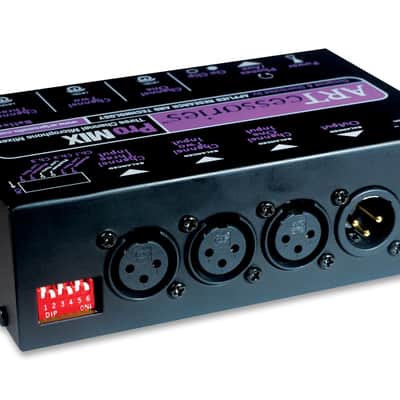

ART Promix

Three Channel Microphone Mono Mixer

Problem

You need to add 3 mics to a mixer, which only has one available channel.

Solution

Insert a ProMIX between the mics and the mixer. Each mic channel on the ProMIX has both phantom power and low-frequency cut selectable via DIP switches plus a level control. The balanced XLR line output can be connected to a mic input on the mixer and headphones or a powered monitor can be connected to the Phone/Aux output. And if AC power is not available, the ProMIX runs on batteries as well.

Specifications

Maximum Gain : +60dB

Input Impedance : 600 Ω

Maximum Input Level : -14dB

Maximum Output Level : +14dB

Output Impedance : 600 Ω

Total Harmonic Distortion : 0.0002

Low Cut : -3dB @ 100Hz

Clip Headroom : 3dB

Output Phantom Power : 12V DC

Power : 12V DC (adapter) / 2x 9V (batteries)

Dimensions : 5.625×3.75×1.75 inches (143mm x 92mm x 45mm)

Weight : 1.5lb (680g)
