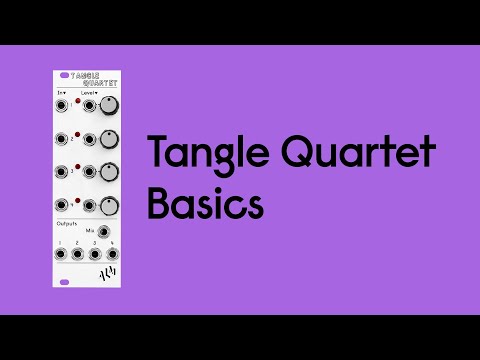

‘Tangle Quartet’ is a high quality quad linear voltage controlled amplifier (VCA) providing individual level control of 4 signal inputs with both individual outputs and a combined ‘mix’ output (for non patched outputs) . Control signal inputs and associated attenuation controls allow for voltage control of signal levels. Control inputs are normalised to 5v thus providing manual mix control in the absence of control signals.

  • Width: 8HP
  • Depth: 32mm
  • Power: ~80mA @+12V / @-12V

Features

  • 4 high quality clean bleed free linear VCA’s in a compact 8hp.
  • Utilises 2164 VCA IC’s for high performance with low noise and low signal distortion.
  • DC coupled inputs and non inverting outputs to support both audio and non audio signals.
  • Normalised attenuation controls allow for manual mixer like operation with no control signal patched.
  • Combined mix and individual outputs.
  • Reverse polarity protection.
  • Pair well with , and
  • Designed and Made in the UK.

EstadoNuevo (nuevo)
Productos nuevos son vendidos por tiendas oficiales o por el fabricante original e incluyen todo su empaquetado original.Más información
Marca
Modelo
  • ALM009 Tangle Quartet Quad Linear VCA & Mixer Eurorack Synth Module
Categorías
Hecho en
  • Reino Unido
Synth Module Function
  • VCA
  • Atenuador
  • Mixer
Paso horizontal
  • 8HP
Modular Synth Format
  • Eurorack
