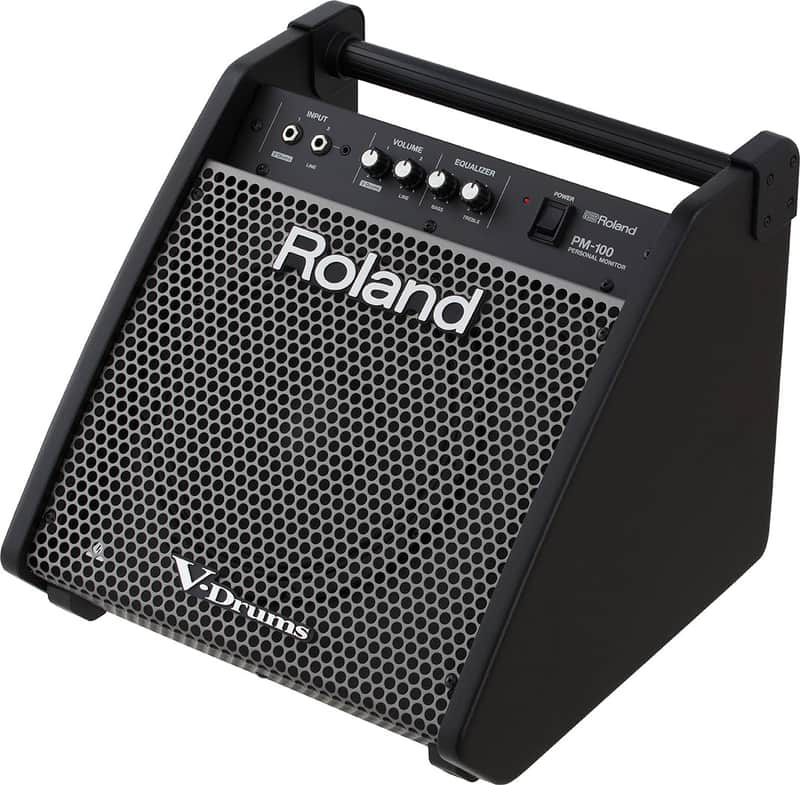

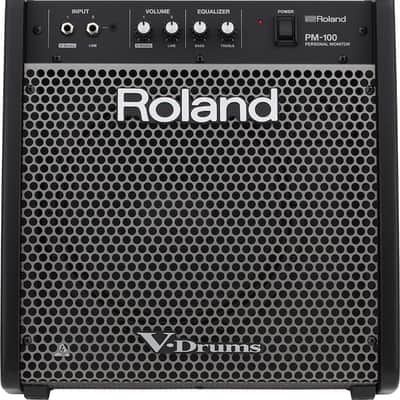

High-Resolution Sound Monitoring, Fine-Tuned for Roland’s V-Drums

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.

Specifications Rated Power Output 80 W Nominal Input Level V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms) Speaker 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1 Controls POWER switch
V-Drums VOLUME knob
LINE INPUT VOLUME knob
BASS knob
TREBLE knob Indicators POWER Connectors V-Drums INPUT jack: Stereo 1/4-inch phone type
LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
AC IN jack Power Consumption 36 W Accessories Owner's manual
Power cord Size and Weight Width 388 mm
15-5/16 inches Depth 407 mm
16-1/16 inches Height 354 mm
13-15/16 inches Weight 13.5 kg
29 lbs 13 oz
