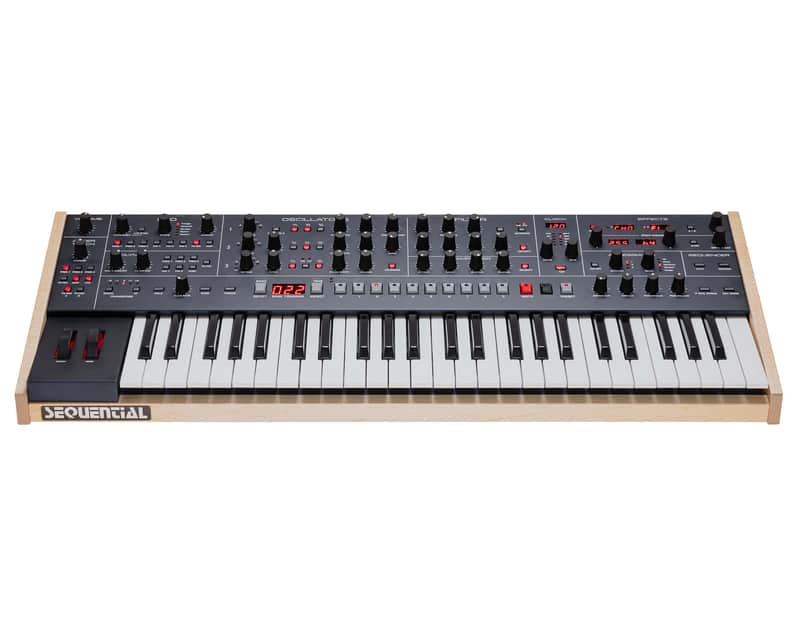

Sequential's newest monster, the Trigon-6 incorporates the same fit and feel, UI, and ease of use as Sequential’s acclaimed Prophet-6 and OB-6, but adds a new twist: a 3-VCO-plus-ladder filter sound engine for a voice that is both timeless and modern. It’s a sound that has proven its appeal since the dawn of the synth era. The Trigon-6 ended up being final project of the late Dave Smith. His hand-picked design team have finally brought this poignant mission to completion, and the baton has been passed.
The VCOs and VCFs are new discrete designs that maximise analog punch and presence. Sequential has put its own unique stamp on this timeless sound by adding inbuilt feedback control, drive, and a new 2-pole mode to the ladder filter to broaden it's application.
The Trigon-6 has the full complement of Sequential’s "desert island" sound-sculpting features including super snappy envelopes, a syncable LFO with multiple waveforms and destinations, a polyphonic step sequencer, and an arpeggiator. Best of all, the knob-per-function front panel of the Trigon-6 puts these conttrols at your fingertips. And the ready-made palette of 500 factory and 500 user presets provides classic basses, leads, and pads to jump start any project.
OSCILLATORS
Three discrete VCOs per voice
Simultaneously selectable wave shapes: triangle, sawtooth, reverse sawtooth, and variable-width pulse
Pulse width per oscillator
Hard sync: oscillator 1 syncs to oscillator 2
Keyboard tracking on/off (oscillator 3)
Low frequency mode (oscillator 3)
Oscillator feedback and drive controls for increased signal saturation
White Noise source
LOW-PASS FILTER
Switchable two/four-pole, discrete, resonant, low-pass, ladder filter per voice
Filter can be driven into self-oscillation with the Resonance control
Bi-polar filter envelope amount
Velocity modulation of envelope amount
Keyboard tracking: off, half, full
FILTER ENVELOPE
Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
Four-stage (ADSR) envelope generator
Velocity modulation of envelope amount
LOW FREQUENCY OSCILLATOR
Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
LFO sync
Initial amount
Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, oscillator 3 pulse width, filter cutoff, amp (VCA)
POLY MOD
Sources: oscillator 3 (bi-polar) and filter envelope (bi-polar)
Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, oscillator 1 pulse width, oscillator 2 pulse width, filter cutoff, feedback amount
VINTAGE KNOB
Recreates vintage synth characteristics by adding voice-to voice variations in component behaviour
AFTERTOUCH
Source: channel (mono) aftertouch with bi-polar amount
Destinations: Destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 3 frequency, LFO amount, amplifier envelope amount, filter envelope amount, FX mix A, FX mix B
CLOCK
Master clock with tap tempo
BPM control and display
MIDI clock sync
ARPEGGIATOR
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Up, down, up/down, random, and assign modes
SEQUENCER
Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
Stereo analog distortion
Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full * bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifter, and ring modulator
Delay sync
True bypass maintains fully analog signal path when digital effects are off
PERFORMANCE CONTROLS
Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouch
Backlit pitch and mod wheels
Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
Transpose controls for an 8-octave range
Hold switch latches held notes on
Polyphonic portamento
Unison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modes
Preset switch: when on, the front panel is live — what you see is what you hear
PATCH MEMORY
500 user and 500 factory programs in 10 banks of 100 programs each
Direct program access, including single-button access to the current set of 10 programs
IN/OUT
Left/mono and right audio outputs (2 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
MIDI in, out, and thru ports
USB for bidirectional MIDI communication
Filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input
Sequencer start/stop footswitch input
POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
PHYSICAL SPECS
31.8” L x 12.7” W x 4.6″ H (80.7 cm x 32.3 cm x 11.7 cm)
9.5 kg (20lbs)
Maple end panels
